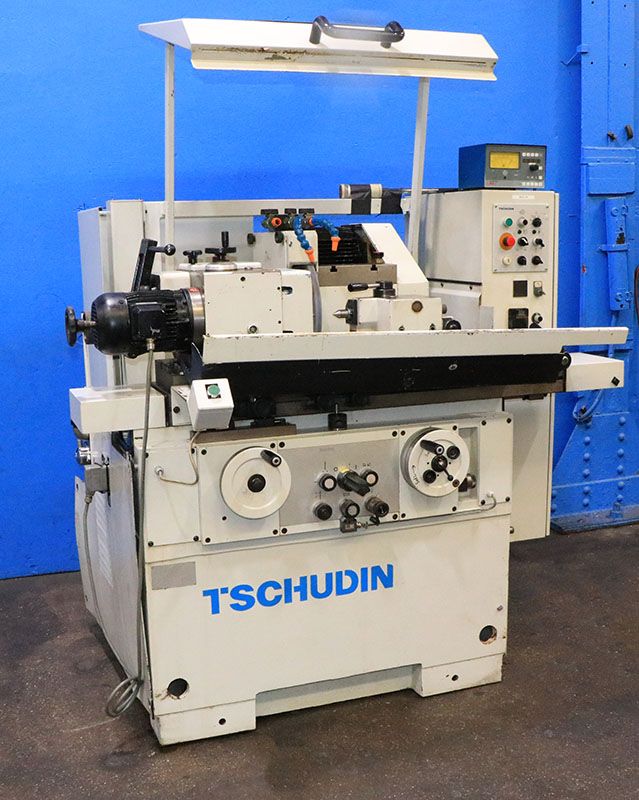

Tschudin HTG-310

Swing Over Table 8"
Distance Between Centers 13.4"
Table Speed 0 to 195 IPM
Swivelling Range +/- 11°
Wheel Size 14"D x 2"W x 5" Bore
Wheelhead Swivelling Range +/- 5°
Wheelhead Motor 4 HP
Rapid Approach 1-1/2"
Automatic Infeed 0 to 0.050" on Diameter
Infeed Speed, Maximum 1.2"/min
Sparkout 2 to 30 Seconds
Spindle Taper #5MT
Workhead Swivelling Range 360°
Infinite Variable Spindle Speeds 50 to 500 RPM
Tailstock Taper of Center Bore #3MT
Tailstock Travel of Center 0.8"
Approximate Weight 4,000 lbs
Hydrodynamic Type Cylindrical Bronze to Steel Bearing Wheelhead Design
Simple One-Knob Control for Traverse & Plunge Grinding Cycles
Hydraulic Operation: Power Table Traverse
Hydraulic Operation: Automatic Infeed
Hydraulic Operation: Plunge Infeed
Hydraulic Operation: Rapid Wheelhead Advance and Retraction
Sparkout Timer
Dual Live/Dead Workhead Spindle
0.00002" Graduated Dial for Positive Stop Diameter
Electrical 3/60/230-460 Volts
Dual Rate Automatic Plunge Infeed Option
Coarse & Fine Cycle Feed Option
Marposs P3UP Measurement System with Unimar S Measuring Head
Flow-Con Coolant System with Motorized Paper Filtration
Buck 6-Jaw Chuck, 7" Diameter
Dial Indicator for Table Taper Adjustment
Table Mounted Dresser
Super-Precision Workhead Option
Quick Acting Collet Closer with W20 Collets
Electrical Cabinet On Machine
Wheelhead Motor 3 kW (4 HP), Wired 3/60/460 Volts, 5.6 kVA Service Required
