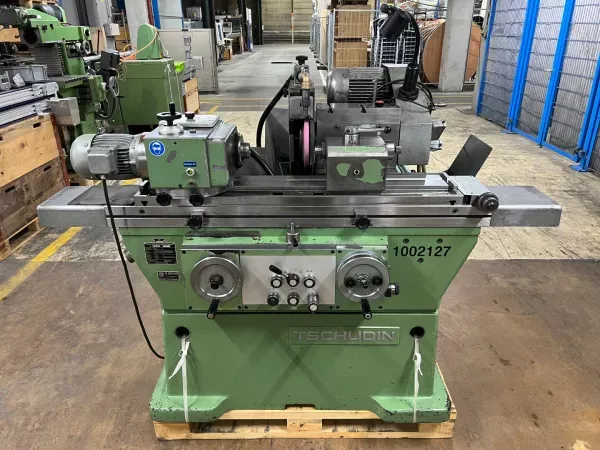

Tschudin HTG 410

Tip width: 480 mm
Peak height: 100 mm
Longitudinal slide travel: 420 mm
Longitudinal slide speed, continuously variable: 0-5 m/min
Reversal delay time, continuously variable: 0-8 sec
Table swivelability: 9°
Cross slide travel via handwheel: 45 mm
Cross slide rapid traverse automatically: 38 mm
Cross slide delivery route automatically: 0-1.2 mm/diameter
Cross slide delivery speed, continuously variable: 0-0.05 mm/sec
Cross slide delivery route, step by step automatic: 0-0.07 mm/diameter
Cross slide information time: 2-30 sec
Grinding wheel diameter: 300 mm
Grinding wheel width: max 50 mm
Grinding wheel bore: 127 mm
Grinding headstock swivelability: 5° approx.
Grinding headstock motor power: 3 kW
Workhead spindle cone: MK4
Workhead spindle nose: M48x3 mm
Workhead swivelability: 360°
Workhead spindle speed, continuously variable: 65-500 rpm
Workhead motor power: 0.55 kW
Tailstock quill taper: MK3
Tailstock quill travel: 20 mm
Hydraulic unit
Coolant tank / pump
Grinding wheels
