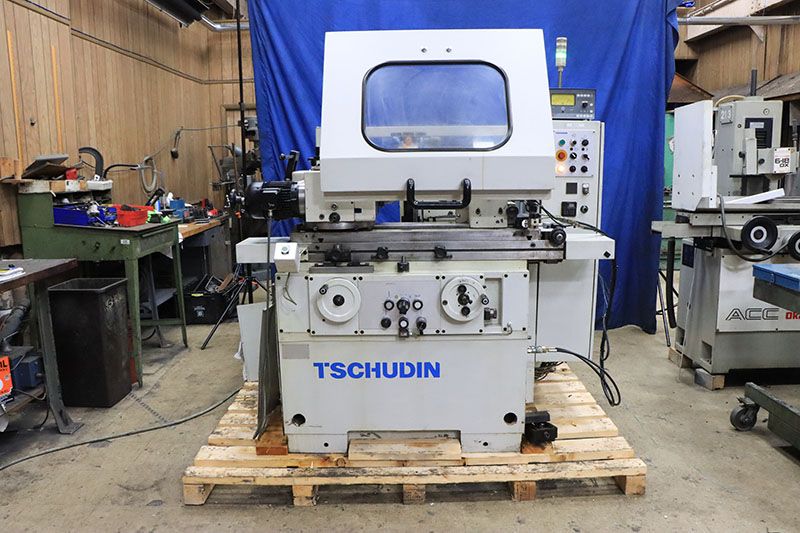

Tschudin HTG-310

Swing over table 8"
Distance between centers 13.4"
Table speed 0 - 195 IPM
Swivelling range ±11°
Control Auto cycle
Marposs P3UP measurement system
Marposs Unimar S measuring head
Hydraulic operation
Power table traverse
Automatic infeed
Plunge infeed
Rapid wheelhead advance and retraction
Sparkout timer
Dual live/dead workhead spindle
Minimum adjustment dial graduation 0.00002"
Wheel size 14" x 2" x 5"
Wheelhead swivelling range ±5°
Wheelhead motor 4 HP
Rapid approach 1-1/2"
Automatic infeed 0 - .050" on diameter
Maximum infeed speed 1.2"/min
Sparkout 2 - 30 seconds
Workhead spindle taper #5 MT
Workhead swivelling range 360°
Variable spindle speeds 50 - 500 RPM
Tailstock taper #3 MT
Tailstock center travel 0.8"
Machine weight 4,000 lbs
Dual rate automatic plunge infeed
Coarse cycle feed option
Fine cycle feed option
Coolant system with motorized paper filtration
6-jaw chuck 7" diameter
Dial indicator for table taper adjustment
Table mounted dresser
Super-precision workhead option
Quick acting collet closer
W20 collets
Center in workhead
5C collet capability with attachment
Dial indicator for table swivel
Fine taper adjustment on tailstock
Manual coarse wheelhead adjustment
Rapid movement lever
Electrical cabinet on machine
Wheelhead motor 3 KW
Wired for 3/60/460 volts
5.6 KVA service required
