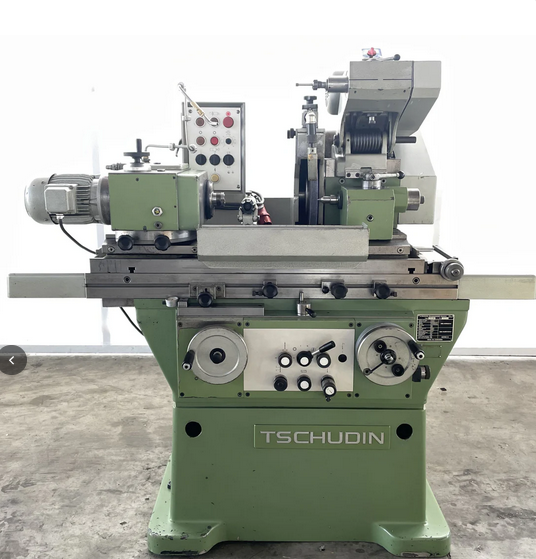

Tschudin HTG 400

Centre Height: 150 mm
Distance Between Centres: 400 mm
Grinding Wheel Diameter: 300 mm
Grinding Wheel Width: 50 mm
Grinding Wheel Bore: 127 mm
Grinding Wheel Speeds: 1500 to 1900 RPM, 3 steps
Workpiece Spindle Speeds: 65 to 500 RPM, stepless
Workpiece Spindle Rotatable: 360°
Spindle Hole: 23 mm
Spindle Taper: 4 CM
Tailstock Taper: 3 CM
Table Angular Displacement: 9°
Table Speed: up to 5 m/min, stepless
Voltage: 50 Hz 3×380 V
External Grinding Wheel Motor: 2.5 CV
Total Power Required: 4 CV
Machine Weight: 1600 kg
Machine Dimensions, L x W x H: 1600 × 1200 × 1550 mm

Features / Equipment
Tailstock
Swivelling Internal Grinding Attachment
Reversible Dressing Device
3-Jaw Chuck 120 mm
3-Jaw Chuck 160 mm
Magnetic Chuck 150 mm
Magnetic Chuck 100 mm
Coolant System with Paper Filtration
Steady
50 mm Elevation Plates
