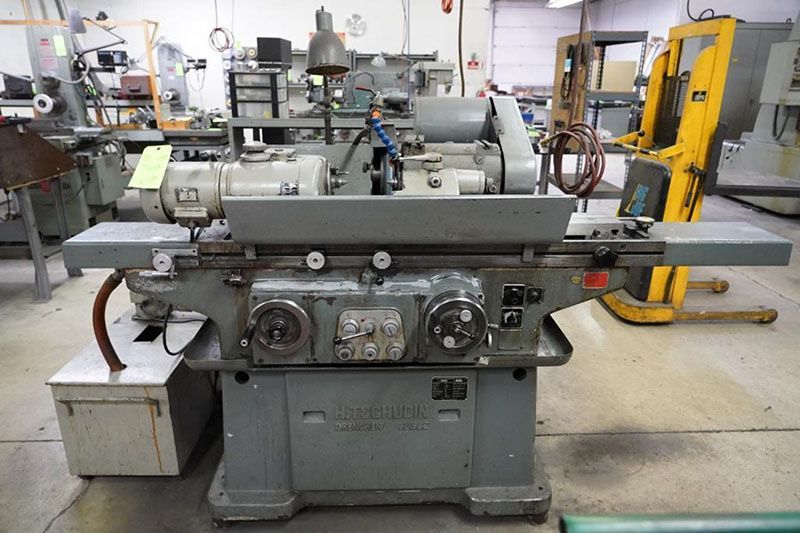

Tschudin HTG-600

Maximum swing over table 8"
Nominal distance between centers 24"
Maximum table travel 24-1/2"
Swivel table toward wheelhead 7°
Swivel table away from wheelhead 4°
Infinitely variable table speed 0 to 200 IPM
Grinding wheel diameter 12"
Grinding wheel width maximum 2"
Grinding wheel hole 5"
Grinding wheel spindle speeds 1500, 1700, 1900 RPM
Range of plunge feed rates 0.0005" to 0.200"
Maximum feed for plunge grinding 0.03"
Automatic pickfeed per table reversal minimum infeed increment 0.000050"
Rapid advance/retraction stroke 1-13/16"
Maximum travel of low slide by infeed screws 2"
Travel of upper slide 4-3/4"
Swivel of upper slide either side of zero 7°
Workhead spindle speeds 65 to 500 RPM
Workhead spindle taper #4MT
Workhead spindle bore 29/32"
Workhead motor power 0.4 HP
Taper of work center with reduction sleeve #3MT
Workhead swivels 360 degrees
Tailstock taper of work center #3MT
Tailstock spindle travel 3/4"
Approximate dimensions 78" x 48" x 54"H
Approximate machine weight 4,700 LBS
Workhead spindle live and dead center
12" grinding wheel
Coolant system
Hydraulic table traverse
Automatic infeed at each table reversal
Automatic plunge infeed
Power rapid wheelhead positioning
Sparkout timer
Wired 3/60/220 volts
