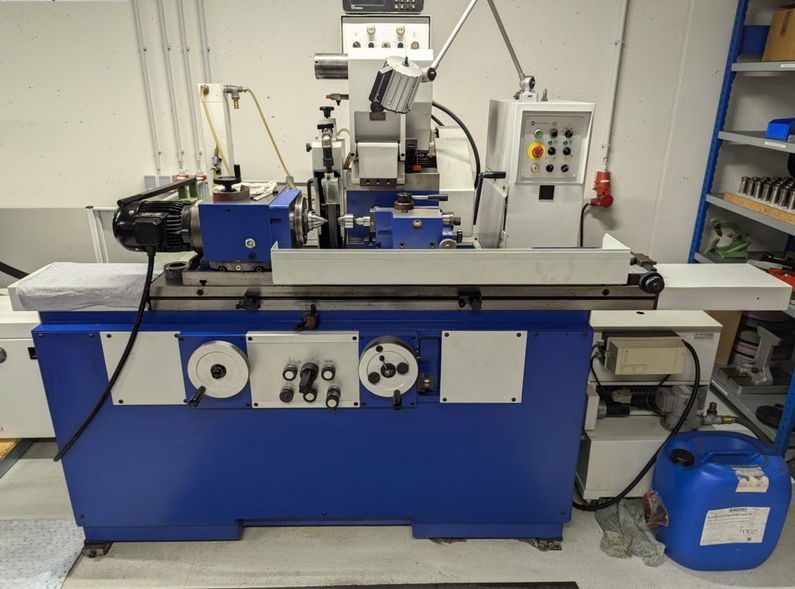

Tschudin HTG 610

Grinding diameter: 200 mm
Grinding length: 620 mm
Center height: 100 mm
Grinding wheel diameter: 350 mm
Grinding wheel width: 50 mm
Spindle bore: 127 mm
Workpiece spindle speed: 65–500 rpm
Grinding head swivel range: 360 °
Grinding spindle head swivel range: ±5 °
Table longitudinal travel: 620 mm
Table speed: 0–5 m/min
Total connected load: 5 kW
Machine weight: approx. 2.6 t

Features / Options:
Conventional control
Delivered overhauled in 2023
Geometrically overhauled
Repainted
Internal grinding device
2-axis digital readout Heidenhain
Tailstock with cylindricity adjustment
Cooling unit with paper filter
