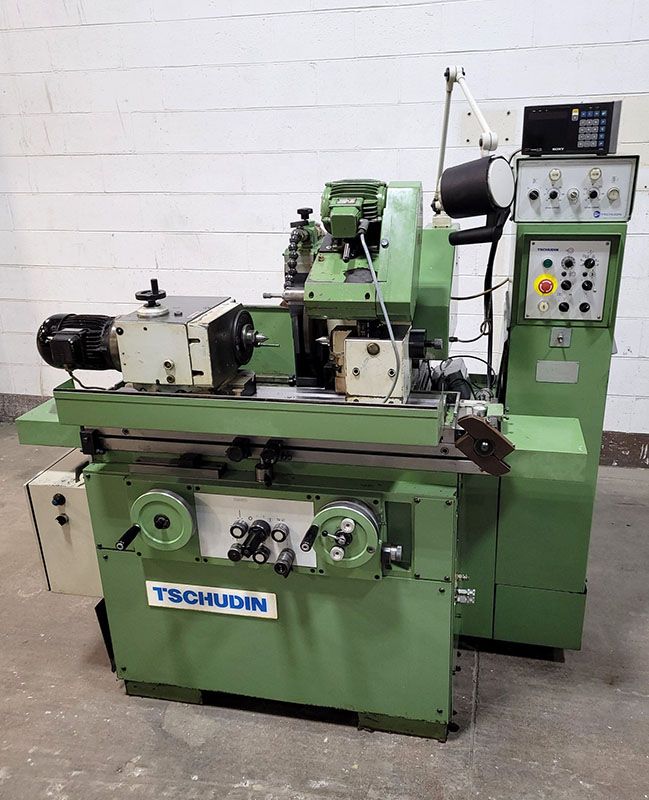

Tschudin HTG310

TSCHUDIN HTG310
1991

Swing over table with risers: 11.8"
Center height with risers: 5.9"
Distance between centers: 13.4"
Table swivel range: ±11°
Wheel size: 14" diameter x 2" width x 5" bore
Wheelhead swivel range: ±12°
Wheelhead motor: 4 HP (3 kW)
Rapid approach power: 1.5"
Manual travel: 1.77"
Automatic infeed range: 0 to 0.050" on diameter
Normal infeed travel max: 0.047"
Fine infeed travel max: 0.0059"
Infeed speed max: 1.2"/min
Sparkout duration: 2 to 30 seconds
Workhead spindle taper: #5MT
Workhead swivel range: 360°
Infinitely variable spindle speeds: 50 to 500 RPM
Tailstock center taper: #3MT
Tailstock center travel: 0.8"
Machine dimensions: 79.53" L x 47.25" D x 57.1" H
Machine weight: 4,000 lbs
Hydrodynamic bronze-to-steel wheelhead bearings
One-knob control for traverse and plunge grinding
Hydraulic table traverse
Hydraulic automatic infeed
Hydraulic plunge infeed
Hydraulic rapid wheelhead advance and retract
Hydraulic sparkout timer
Dual live/dead workhead spindle
0.00002" graduated dial for positive stop
3/60/230-460 volt electrics
Factory risers
Swing-down I.D. grinding attachment
I.D. grinding spindle with arbor and wheel
Extra grinding wheels for I.D. spindle
Extra belts
Electronic variable speed control for I.D. spindle
SONY single-axis DRO
Fixed stop for table slide
Dual-rate automatic plunge infeed (coarse/fine)
Coolant system with paper filtration
Coolant guarding
Work light
Two additional grinding wheel hubs with wheels
Dial indicator for table swivel adjustment
Workhead center
Radius dresser
Compatible with 5C collet using adapter or power closer
Complete machine manual and documentation
High-mounted electrical cabinet
Wired for 3/60/460 volts
Also wired for 3/60/230 volts, 5.6 KVA
