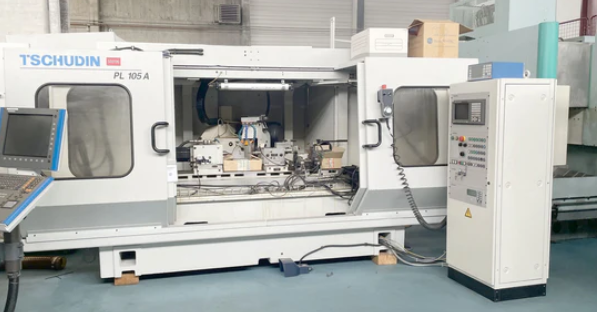

Tschudin PL 105 A

Control: GE FANUC Series 18-T
Center Height: 175 mm
Distance Between Centers: 1000 mm
Maximum Grinding Diameter: 348 mm
Grinding Length: 1000 mm
Maximum Workpiece Weight: 250 kg
Grinding Wheel Diameter: 500 mm
Grinding Wheel Width: 100 mm
Grinding Wheel Peripheral Speed: 45 m/s
Longitudinal Travel: 1400 mm
Transverse Travel: 340 mm
Swivel Range: +9° / -9°
Longitudinal Feed Speed: 8000 mm/min
Transverse Feed Speed: 8000 mm/min
Workhead Speed: 20–1000 rpm
Workhead Rotation: +30° / -45°
Workhead Taper: MT6
Tailstock Taper: CM4
Tailstock Quill Travel: 50 mm
Grinding Spindle Motor: 15 kW
Voltage: 3 × 400 V / 50 Hz
Total Power: 27 kW
Power Requirement: 16 kVA
Angular Infeed
MARPOSS Measuring Head
Grinding Wheel Set
Machine Dimensions: 4410 × 3550 × 1900 mm
Machine Weight: 5100 kg
