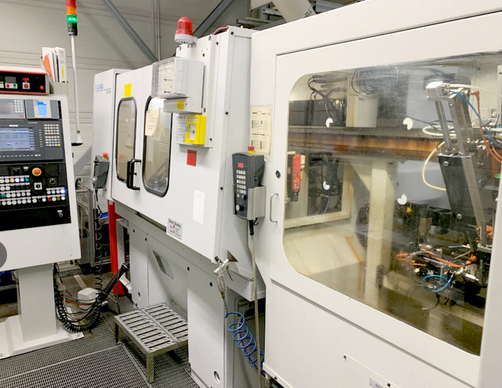

Tschudin TS 45 A

Centre height 100 mm
Distance between centres 430 mm
Max grinding diameter 198 mm
Grinding length 400 mm
Max workpiece diameter 198 mm
Min workpiece diameter 1 mm
Z axis travel 480 mm
X axis travel 340 mm
Max workpiece weight on centres 100 kg
Grinding wheel diameter 500 mm
Grinding wheel width 80 mm
Peripheral speed 45 m/s
Workpiece spindle speed stepless 20–1000 rpm
Holding taper 5 CM
Rotatable +30/45°
Tailstock taper 3 CM
Tailstock travel 20 mm
Oscillation speed 8000 mm/min
Air connection 6 bar
Voltage 400 Volt 3x 50 Hz
Grinding spindle motor 7.5 kW
Workpiece spindle motor 3 kW
Total power 16 kVA
Machine weight 4500 kg
Length 3700 mm
Width 3300 mm
Height 2500 mm
Touch probe MARPOSS
Measuring control
Profile wheel truing attachment
Lamp
Status light
Oil mist extractor
Automatic loader with rail
