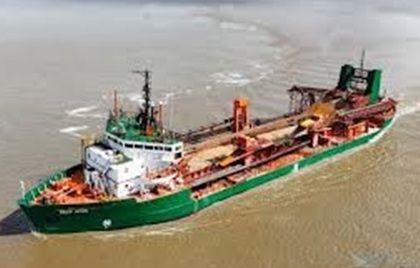

TSHD / Aggregates Carrier Hopper volume 2,750 m³

Ref : 2750108-10-MT

Condition : Used

Manufacturer : -

Model : TSHD / Aggregates Carrier

Short Description : Hopper volume 2,750 m³

Year(s) : 1986

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Length overall 98.3 m
Breadth 17.35 m
Sand intake 4,500 tons
Dredging depth 45 m
Dredging pipe diameter 700 mm
Dredge pump submersible 1,100 kW electric motor
Discharging by 2 drag scrapers approx. 8 m³ each
Discharging conveyor belts port and starboard aft
Emergency bottom doors/valves diameter 750 mm
Gross tonnage 3,498
Net tonnage 1,049
Main engine Mirrlees Blackstone MK III 6 cyl. 3,226 kW with shaft generator 2,250 kVA
Auxiliary engine Mirrlees Blackstone MK II 1,321 kW to 1,525 kVA generator
Auxiliary Caterpillar 3408 309 kW to 390 kVA generator
Emergency generator 1
Variable pitch propeller
Speed 10/12 knots
Bow thruster 294 kW
Accommodations refurbished/upgraded 2022
