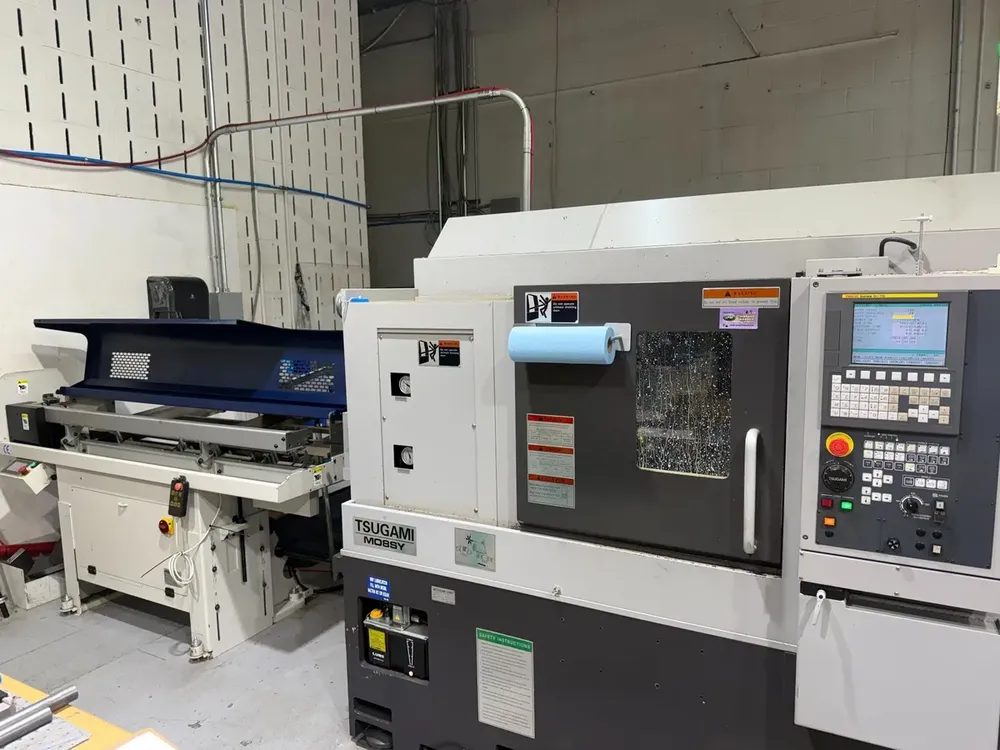

Tsugami FANUC 0i-TD CNC Color Control 4,500 RPM M08SY 5 Axis

X1-Axis Travel: 8.7 in
Y1-Axis Travel: 3.94 in
Z1-Axis Travel: 15.75 in
W-Axis Travel (Sub Spindle): 19.92 in
C-Axis Indexing (Main): 0.00°
C-Axis Indexing (Sub): 0.00°
Rapid Traverse X1: 945 ipm
Rapid Traverse Z1: 1,062 ipm
Rapid Traverse Y1: 472 ipm
Control: FANUC 0i-TD CNC Color Control
8.4 in Color LCD
Tool Eye
Work Catcher
Rigid Tap on Milling Head
Custom Macro
Variable Lead Thread Cutting
Barfeed Interface
Bar Capacity (Main): 2.5 in
Bar Capacity (Sub): 2 in
Turning Length: 14.96 in
Distance Between Spindles: 19.92 in
Spindle Speed (Main): 4,500 RPM
Spindle Motor (Main): 15 HP
Spindle Nose (Main): A2-6
Spindle Bore (Main): 2.87 in
Sub Spindle
Spindle Speed (Sub): 4,500 RPM
Spindle Motor (Sub): 10 HP
Spindle Nose (Sub): Flat Nose
Milling Spindle Speed: 5,000 RPM
Milling Motor: 5 HP
Main Chuck: 8 in 3-Jaw Hydraulic Chuck
Sub Chuck: 6 in 3-Jaw Hydraulic Chuck
Royal Collet Chucks for Both Spindles
12-Station Turret
Chip Conveyor
All Available Tool Holders
All Available Manuals
Edge Magazine Short Bar Load System
Patrol Light
Machine Weight: 13,007 lb
