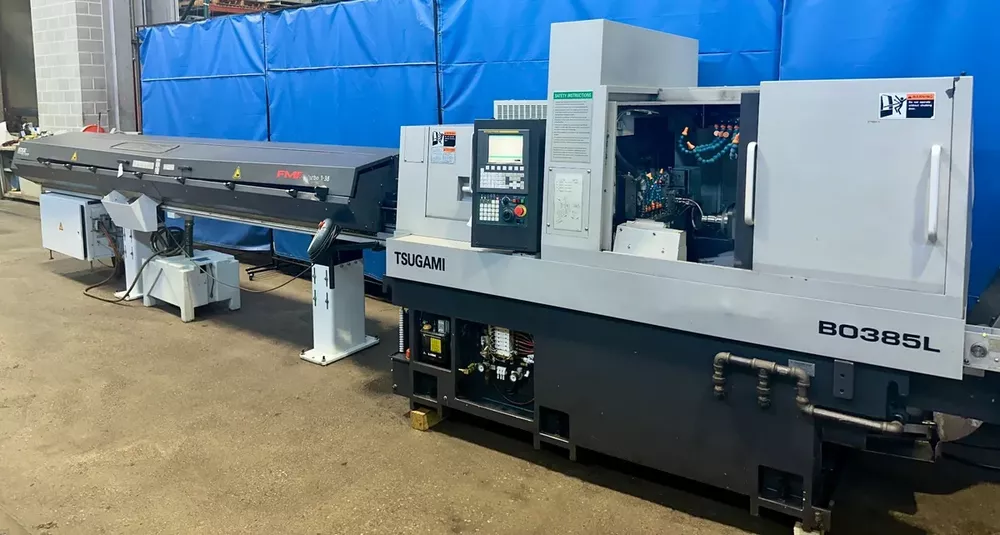

Tsugami Fanuc 0i-TD CNC Control 6000 RPM B0385L 5 Axis

X1-Axis Rapid Traverse Rate 944.9 in/min
Y1-Axis Rapid Traverse Rate 944.9 in/min
Z1-Axis Rapid Traverse Rate 944.9 in/min
X2-Axis Rapid Traverse Rate 1,259.8 in/min
Spindle Index C1 Axis and C2 Axis
Fanuc 0i-TD CNC Control
5 Axis Configuration Z1-X1-Y1-X2-Z2
Max Barstock Diameter 1.4961 in
Max Workpiece Length 3.937 in
Main Spindle Speed Range 200 - 6,000 RPM
Back Spindle Speed Range 200 - 7,000 RPM
Tool Spindle Speed Range 200 - 5,000 RPM
Main Spindle Power 14.8 hp
Back Spindle Power 7.4 hp
Cross Drill Front Tool Post Power 1.3 hp
Cross Drill Rear Tool Post Power 1.3 hp
Z1 Axis Power 1.6 hp
X1 Axis Power 1 hp
Y1 Axis Power 1 hp
X2 Axis Power 3.4 hp
Z2 Axis Power 3.4 hp
Coolant Pump Power 0.8 hp
Lubrication Pump Power 0.004 hp
Compressed Air Requirement 58 PSI
Air Discharge Rate 3.5 SCFM
Coolant Tank Capacity 51.5 gal
Total Tool Storage Capacity 23
Tool Size 0.787 x 0.787 x 4.92 in
Bar Feeder 12 ft Edge Technologies FMB 3-38
High Pressure Coolant System 1000 PSI MP Systems
Coolant System Rosedale Filtration System
Chip Conveyor Included
Barstock Diameter Back Spindle 1.4961 in
Tool Storage Capacity 23 Tools
Machine Dimensions 99.2 x 52.95 x 77.56 in
Machine Weight 10,150 lbs

CONDITION: Excellent condition reported
Power On Hours 45,090 hrs
Cutting Time Hours 18,111 hrs
