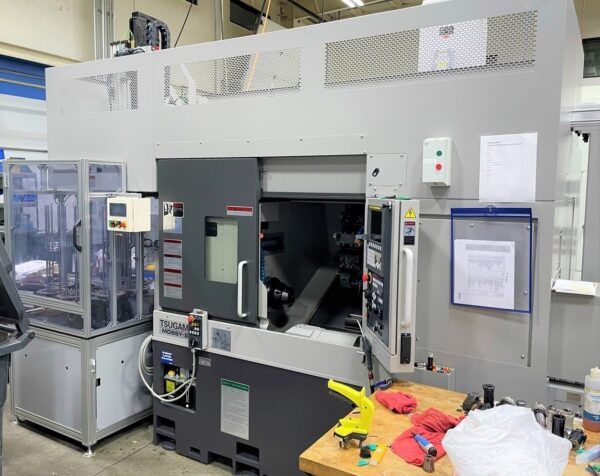

Tsugami Fanuc 0i-TF CNC 4,500 RPM M08SY-II 5 Axis

Rapid traverse X-axis 24 m/min
Rapid traverse Y-axis 12 m/min
Rapid traverse Z-axis 30 m/min
C-axis on main spindle
C-axis on sub-spindle
Y-axis
Control Fanuc 0i-TF CNC
Coolant system
Mist unit
Maximum machining diameter 280 mm
Maximum machining length 380 mm
Maximum chuck size 8 in
Main spindle speed 200–4,500 RPM
Sub-spindle speed 200–4,500 RPM
Main spindle nose JIS A2-6
Main spindle bore 2.87 in
Main motor power 7.5 / 11 kW
Live tool speed up to 5,000 RPM
Number of turret stations 12
3-jaw chuck
Collet nose on main spindle
Collet nose on sub-spindle
Gantry loader
Stocker
Chip conveyor
Live milling
Miscellaneous tooling
Approximate machine weight 12,500 lb
