Tsugami FANUC 31i-B5 8000 rpm SS327III-5AX 7 Axis

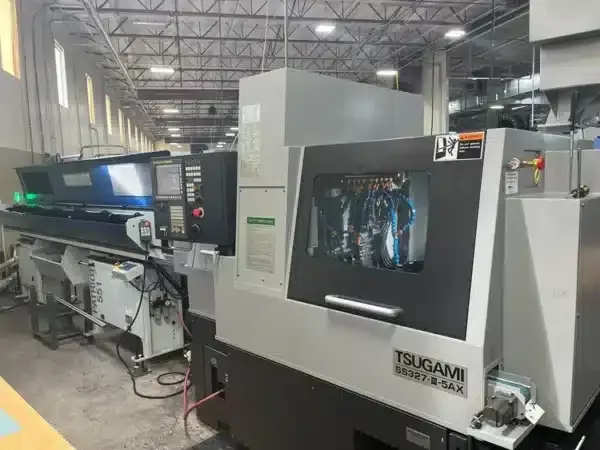

TSUGAMI SS327III-5AX
Year: 2020

Control FANUC 31i-B5
Number of axes 7
Main spindle speed 200–8,000 rpm
Sub spindle speed 200–8,000 rpm
Live tool speed (B-axis tools) 7,000 rpm
Live tool speed (others) 6,000 rpm
Main spindle motor 3.7 / 5.5 kW
Maximum bar stock diameter 32 mm
Guide bushing type Sliding headstock / guide bushing
Convertible to chucker Yes
Max headstock stroke with guide bushing 330 mm
Max headstock stroke without guide bushing 70 mm
Standard tool positions 36
Live tool positions (standard / max) 18 / 20
Machine weight 4,000 kg
Machine footprint 2,150 × 1,280 × 2,010 mm

7-axis machining
Simultaneous 4-axis and 5-axis machining
Servo-driven modular B-axis
B-axis live tools (4 front, 2 rear)
Modular tool zone
Cartridge-type live face tools on sub spindle side
Large linear guides
3 toggle clamping system
Thermal displacement compensation
4GB data server
Edge Technologies Patriot 551 barfeed
LNS chip conveyor
MP Systems high pressure coolant system
