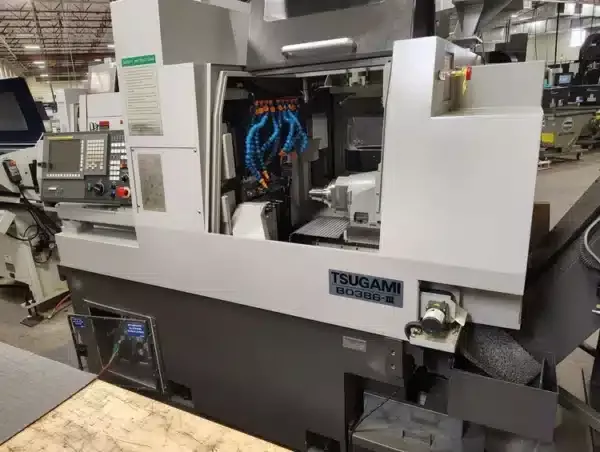

Tsugami FANUC 32i-B 6,000 rpm B0386-III 6 Axis

Tsugami B0386-III
2021

Maximum bar stock 38 mm / 1.5"
6 axes
Sliding headstock / guide bushing YES
Convertible to run without guide bushing (chucker) YES
Max headstock stroke with guide bushing 320 mm / 12.6"
Max headstock stroke without guide bushing 70 mm / 2.75"
32 standard tool positions
42 max tool positions
15 standard live tool positions
26 max live tool positions
Control FANUC 32i-B
Main spindle speed 200 – 6,000 rpm
Sub spindle speed 200 – 7,000 rpm
Live tool speed 6,000 rpm
Main spindle motor 7.5 / 11 kW
Weight 4,850 kg / 10,694 lbs
Footprint 2,240 x 1,515 x 2,050 mm (88" x 60" x 81")
Fanuc CNC Control
Edge Technologies Patriot 551 Bar Feed System
Tri Mist Mist Collection System
Heavy cuts design
Large linear guides
Three toggle clamping system
Extra ribbing under spindles
Powerful horsepower milling spindle motors
Cross milling and drilling capability
8 station driven back working block
Included chucker conversion kit
