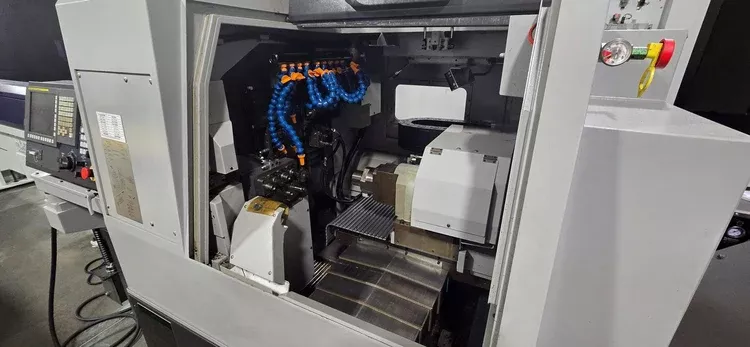

Tsugami FANUC 32i-B 10,000 rpm S206-II 6 Axis

TSUGAMI S206-II
Year: 2019

X1 axis scale
Controlled linear axes: 6
C axis main spindle indexing
Back spindle full C axis
Control unit: FANUC 32i-B
Coolant through sub spindle
Spindle cooling for main and sub motors
Continuous thread cutting
Rotary tool drive system
Working bar diameter: 3–20 mm
Max machining length: 210 mm
Max machining length (chucker mode): 45 mm
Main spindle drilling diameter: 12 mm
Main spindle tapping diameter: M10
Back spindle chucking diameter: 20 mm
Back spindle drilling diameter: 10 mm
Back spindle tapping diameter: M10
Cross drilling diameter: 8 mm
Cross tapping diameter: M6
Back drilling diameter: 8 mm
Back tapping diameter: M6
Tool spindle slotting cutter diameter: 30 mm
Main spindle speed: 200–10,000 rpm
Back spindle speed: 200–10,000 rpm
Rotary guide bushing speed: 10,000 rpm
Main spindle motor: 3/5 hp
Back spindle motor: 3/5 hp
Cross drilling motor: 1.4 hp
Rear & back drilling motor: 2 hp
Tool storage capacity: 38 (standard), 47 (optional)
Tool size: 0.5" x 0.5" x 3.35"
Machine dimensions: 84.6" x 50" x 77.56"
Machine weight: 3,900 lb
All manuals, schematics, and documentation
All rotary driven tools
All collets
Tri Mist 850 mist collector
Main spindle collet chuck unit
Back spindle collet chuck unit
V2 HO8 2000 PSI high pressure coolant (8 ports)
MH 500 chip conveyor
Fire Trace suppression system
Minuteman 320 2-channel 12' bar feed system
Run time: 5,452
Cut time: 5,328
Power on time: 6,859
