Tsugami Fanuc 32i MB 8,000 1/min BO326E-II 2 Axis

X-axis travel: 320 mm
Z-axis travel: 320 mm
C-axis main spindle
C-axis opposed spindle
Control: Fanuc 32i MB
Max turning diameter: 32 mm
Max turning length: 320 mm
Max speed main spindle: 8,000 1/min
Max power main spindle: 5.5/3.7 kW
Spindle bore main spindle: 8-32 mm
Max speed opposed spindle: 8,000 1/min
Max power opposed spindle: 3.7/2.2 kW
Coolant through main spindle
Fully enclosed work area
Light in working area
Preparation for central oil-/emulsion mist extraction unit
Chip conveyor
Coolant unit with paperband filter
High pressure pump
Automatic CO2-fire extinguishing system
Part outfeed conveyor

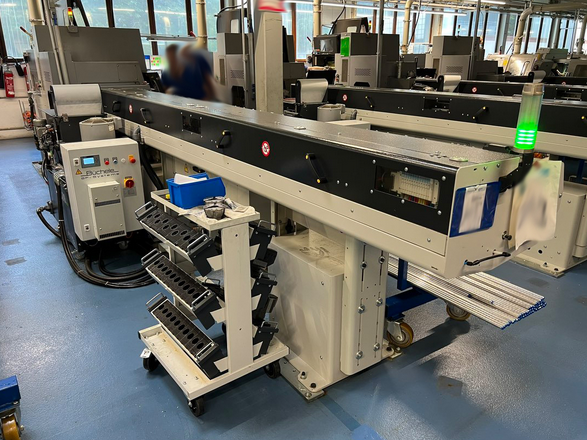

Bar loader/magazine
Tapping without compensation chuck
Circumference surface milling (C- and Z-axis interpolation)
Polygon milling
Warning lamp
1 set collet chuck
1 set tool holder for turning tools
1 set tool holder for driven tools
Total power requirement: 21 kVA
Machine dimensions (LxWxH): 2,150 x 1,280 x 2,010 mm
Machine weight: 3,500 kg
Equipped with new coolant unit and upgraded bar loader in 2023
Change over to short drilling possible
Driven guide bush
