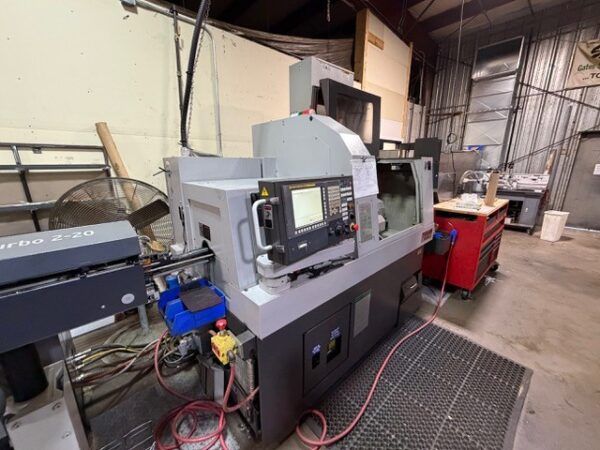

Tsugami FANUC 32i-MB CNC Control 10,000 RPM S206 6 Axis

Max Turning Diameter: 20 mm
Max Turning Length: 250 mm
Max Turning Length with Gripping Unit: 210 mm
X1 Axis
X2 Axis
Y1 Axis
Y2 Axis
Z1 Axis
Z2 Axis
Rapid Traverse: 944 IPM
Main Spindle C-Axis: 360°
Back Spindle C-Axis: 360°
FANUC 32i-MB CNC Control
Back Spindle
Live Tooling
Long Parts Capability
C & Y Axis Capability
MPG Handwheel Control
Main & Back Spindle Synchronization
High Speed Program Processing
Absolute Position Detection
Max Bar Capacity: 20 mm
Main Spindle Bore: 20 mm
Main Spindle Speed: 10,000 RPM
Back Spindle Speed: 12,000 RPM
Back Spindle Motor: 3.7 kW
Driven Tool Speed: 8,000 RPM
Driven Tool Motor (Front Tool Post): 0.75 kW
Driven Tool Motor (Rear Tool Post): 1 kW
Max Main Spindle Drilling Diameter: 10 mm
Max Main Spindle Tapping Diameter: M8
Max Back Spindle Chucking Diameter: 20 mm
Max Back Spindle Drilling Diameter: 8 mm
Max Back Spindle Tapping Diameter: M6
Max Cross Drilling Diameter: 7 mm
Max Cross Drilling Diameter: 10 mm
Max Cross Tapping Diameter: M5
Max Tool Spindle Slotting Cutter Diameter: 30 mm
Max Tool Spindle Drilling Diameter: 8 mm
Max Back Tapping Diameter: M5
Max Tool Positions: 25
Cross Turn Stations: 8
Cross Drill Stations: 3
Main/Sub Drill Stations: 5
Sub Drilling Stations: 4
Live Cross Mill Stations: 2
Live Sub Mill Stations: 4
FMB Turbo 2-20 Bar Feeder
Part Catcher
Automatic Lubrication System
Coolant Tank
Chip Conveyor
Mist Collector
