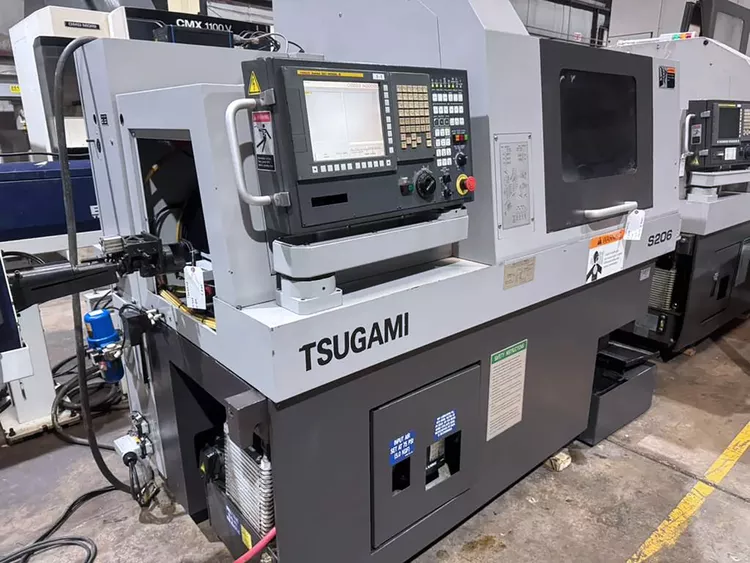

Tsugami Fanuc 32i-MB CNC Variable Speed S206 5 Axis

Controlled Linear Axes: X1
Controlled Linear Axes: X2
Controlled Linear Axes: Y1
Controlled Linear Axes: Y2
Controlled Linear Axes: Z1
Controlled Linear Axes: Z2
C Axis Capability
Y Axis Capability

Control: Fanuc 32i-MB CNC
High Speed Program Processing
Absolute Position Detection
MPG Handwheel Control
Main and Back Spindle Synchronization

Live Tools Capable
Long Parts Capable
Max Bar Capacity: 0.79″ (20 mm)
Max Turning Diameter: 0.79″ (20 mm)
Max Turning Length: 9.843″ (250 mm)
Max Turning Length with Gripping Unit: 8.26″ (210 mm)

Back Spindle
Max Main Spindle Drilling Diameter: 0.39″ (10 mm)
Max Main Spindle Tapping Diameter: M8
Max Back Spindle Chucking Diameter: 0.79″ (20 mm)
Max Back Spindle Drilling Diameter: 0.31″ (8 mm)
Max Back Spindle Tapping Diameter: M6
Max Back Tapping Diameter: M5
Max Cross Drilling Diameter: 0.275″ (7 mm) ER11
Max Cross Drilling Diameter: 0.393″ (10 mm) ER16
Max Cross Tapping Diameter: M5 x 0.8
Max Tool Spindle Slotting Cutter Diameter: 1.18″ (30 mm)
Max Tool Spindle Drilling Diameter: 0.314″ (8 mm)
High Speed Rapid Traverse: 944 IPM
Max Tool Positions: 25

Edge Minuteman 320 SE Bar Feeder
Automatic Lubrication System
Part Catcher
Coolant Tank
