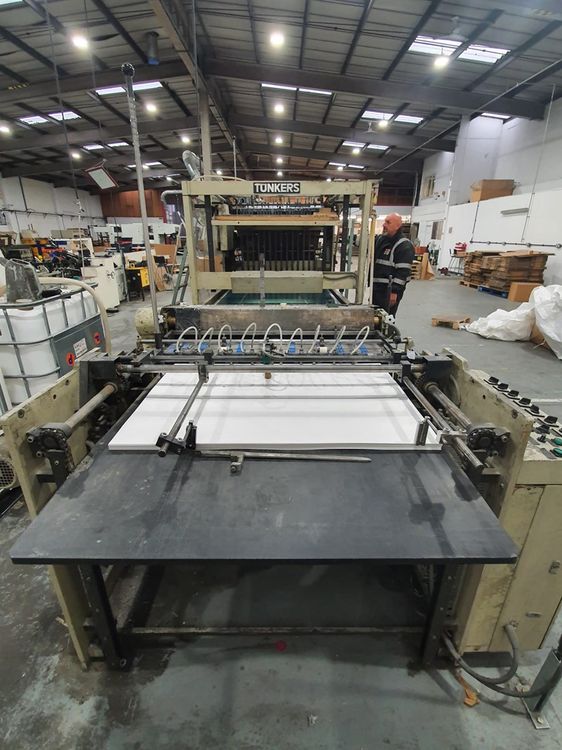

Tünkers 1450 Fully Automatic High Speed Sheet to Sheet Laminating Machine
EUROPE (Western and Northern)
Sheet Sizes: Max. 1450mm x 1650mm, Min 500mm x 500mm,
Pallet height: Max. 1600mm,
Speed max: 5,000 sheet/hour,
Equipped with: Litho sheet feeder (rear edge suction head)
Substrate feeder (magazine suction belt feeder -top load-)
Combined gluing and laminating station
Compression belt 4500mm long, 2880mm effective
Down stacker with non-stop device
Laminating accuracy approx. +/- 1,5 mm – depending on size and material
Machine is designed to laminate litho printed paperboard and cardboard to pre-cut sheets of single
or double face corrugated board (typically B-flute, E-flute, F-flute) and solid board and other plane and even materials
