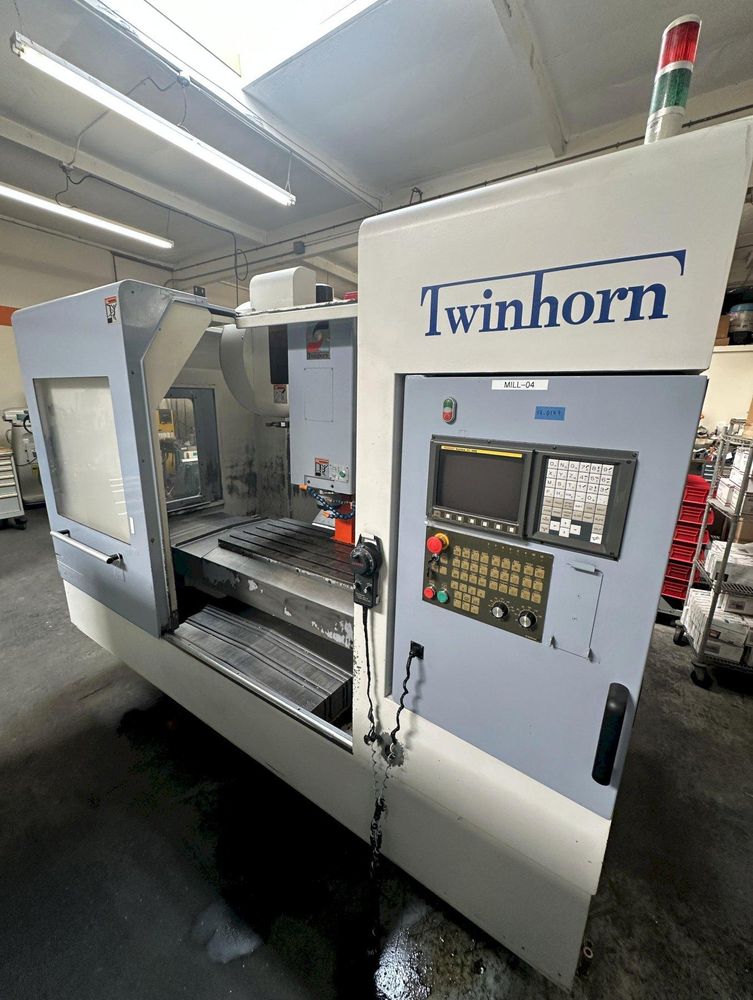

Twinhorn VK-1055 3 Axis

Control: Fanuc Oi-MB
X-axis travel: 40.2 in
Y-axis travel: 21.6 in
Z-axis travel: 21.6 in
Spindle nose to table: 5.9–27.5 in
Spindle center to column front: 25 in
Column rail face to table center: 14.3–36 in
Rapid feedrate (X/Y/Z): 590 in/min
Cutting feedrate: 197 in/min
Table size: 43 × 21.6 in
Maximum table load: 1762 lb
T-slots (number): 5
T-slot pitch: 3.9 in
T-slot width: 0.7 in
Spindle speed: 50–8000 RPM
Spindle diameter: 2.55 in
Spindle taper: BT-40 / CT-40
Spindle motor: 15 HP
Maximum tool diameter: 31 in
Maximum tool length: 11.8 in
Maximum tool weight: 15.4 lb
Positioning accuracy: 0.00019 in × 11.8 in
Repeatability: 0.00011 in
Air pressure required: 85 psi
Machine weight: 13,215 lb
Machine dimensions (L×W×H): 118 × 102 × 104 in
