Twister & Winder MERRA

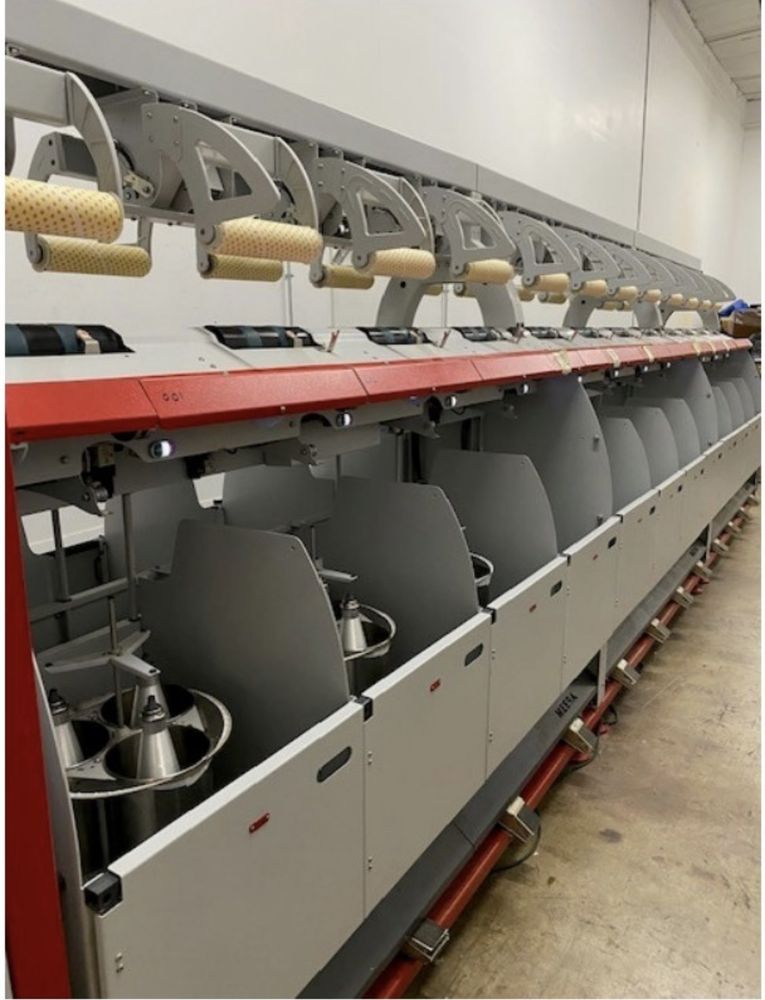

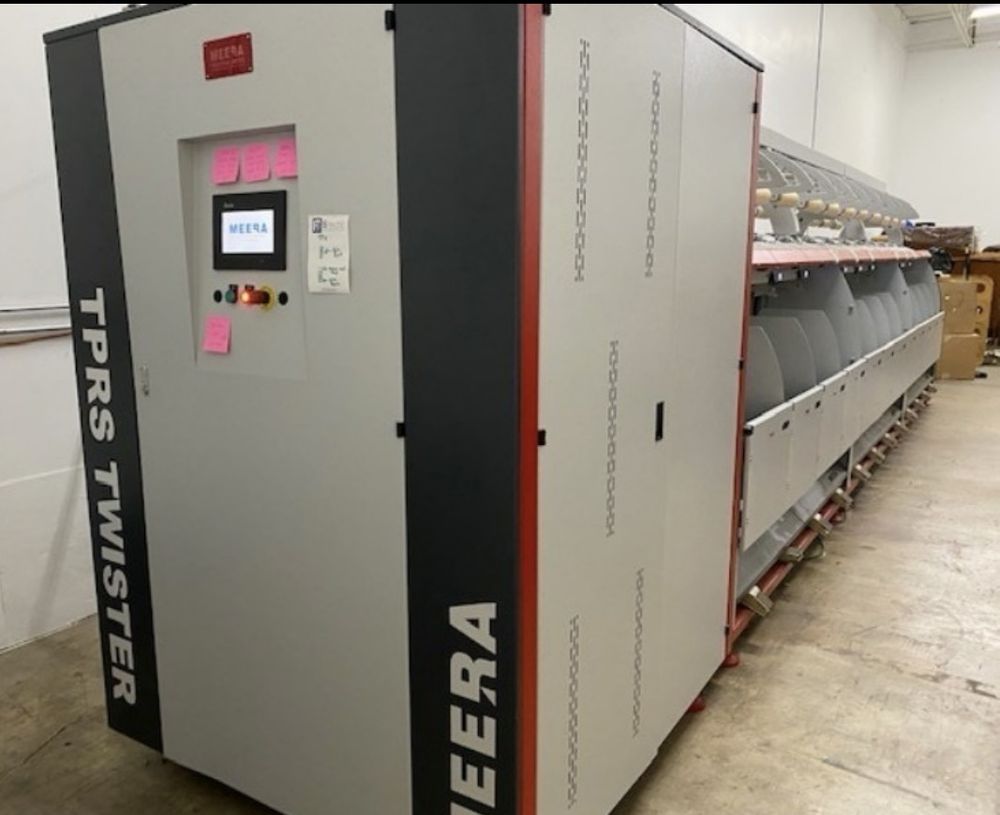

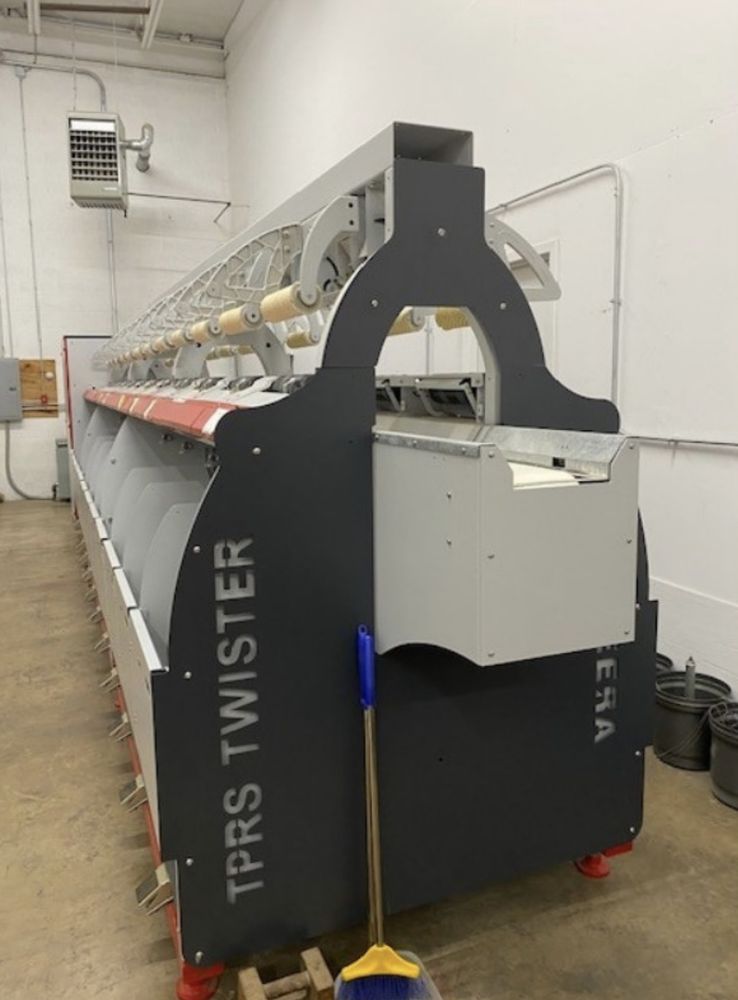

Model TPRS-25 Twister, 24 positions, with interchangeable buckets to ply-twist
(with offsetting S and Z twist) 2 or 3 ends or run a single end. Model S-700 Pirn / Cop Winder.with 10 positions.
NOTE: Single end buckets available but could be an additional cost.
Twister previously ran: 420/3 ply S/Z 630/3 ply S/Z 840/3 ply S/Z TFO (Single end Twist) 200 D Nomex 3 tpi Z 630 D 8.5 tpi Z A versatile one-step S/Z twister, the TPRS-25 handles mid-range deniers (600-6000) and is designed for applications like heavy fishing twines, industrial threads, and high tenacity yarns.

It features individual spindle motors for high production and lower power consumption, alongside a modular design that includes
Air Threading and individual position start/stop for efficient operation and knotless packages up to 5 kg Denier Range 600 - 3000 (1200 - 2500 for specific applications).

Applications Heavy fishing twines (210/9, 210/12, 210/18), bag closing threads (600/2, 840/2, 1000/3), high tenacity threads, cotton twine, footwear threads, leather sewing thread, geotextiles, hose reinforcement, cargo nets.
Handles PPMF, PP fibrillated tapes, nylon, polyester multifilament, spun polyester & cotton.
Package Weight Knotless take-up packages up to 5 Kg for efficient downstream processing.
Drive & Speed Individual spindle motors for Ply & Cable (S/Z) twist; max speed 4500 RPM.
High production with reduced power consumption (up to 6000 denier).
Moderate Package Size 5KG packages vs 3KG (TPRS-19) and 15KG (TPRS-50) for optimal handling
Operational Design Modular build, optional air threading, individual spindle start/stop, length counting, conveyor handling for bulky packages, inverter drive with HMI, recipe storage (TPM,
winding tension, speed, overfeed ratio), yarn break sensors with auto cradle lift & individual spindle stoppage.

Model S-700 Winder The Servo Controlled Cop Winder (Model S-700) is a PLC system-driven machine
with a servo motor, ensuring automatic operation, constant yarn tension,
and uniform yarn speed up to 700 m/min. It offers high flexibility, handling various deniers
and all types of yarn (e.g., FDY, POY, DTY) and supporting diverse winding methods like wrap, filling,
and bottle winding Driving Technology Servo motor driven with a PLC system
Max Spindle Speed 300 to 700 meters per minute (m/min.)
Denier Range 30-300 Max Package Weight The maximum package weight is 1.25 KG.
Applications Up to 8400 denier maximum capacity
Yarns For Filament Yarns, Polyester, Polypropylene, Nylon
Automation Servo Motor Driven PLC System Includes spare parts & bobbins.
