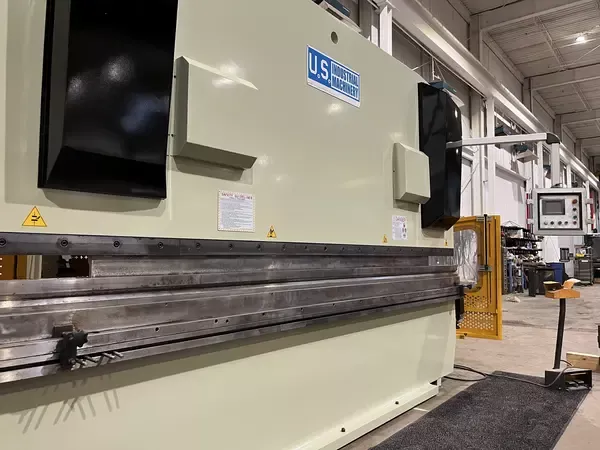

U.S. Industrial US 250 250 ton

13' length
Hydraulic type
Overall length 157"
Between housings 124"
Stroke 3.14"
3 axes
Working pressure 250 tons
Length of working table 157.4"
Distance between housings 124"
Throat depth 15.7"
Stroke adjustment of ram 3.14"
Ram travel 7.8"
Open height 22"
Rapid ram travel speed 2.4"/sec
Rapid ram retreat speed 2.0"/sec
Backgauge travel 24"
Hydraulic oil capacity 108 gal
Motor horsepower 25 HP
Net weight 39,683 lb
Length 179"
Width 75"
Height 108"
Flush floor no pit required
Control password 3502117

4-axis CNC controlled auto crowning
Controls bend angle and backgauge position
6" LCD touchscreen
Code programming
Graphic programming
Tool library
Metric/inch switchable
Auto bend sequence
Auto backgauge retract
Spread length
Interference bend alert
Calculated bend allowance
Programmable ram dwell
Program storage with USB port
Ethernet
RS232
Light curtain system
CNC controlled third axis (backgauge height)
CNC controlled mechanical auto crown
Flush floor no pit required
