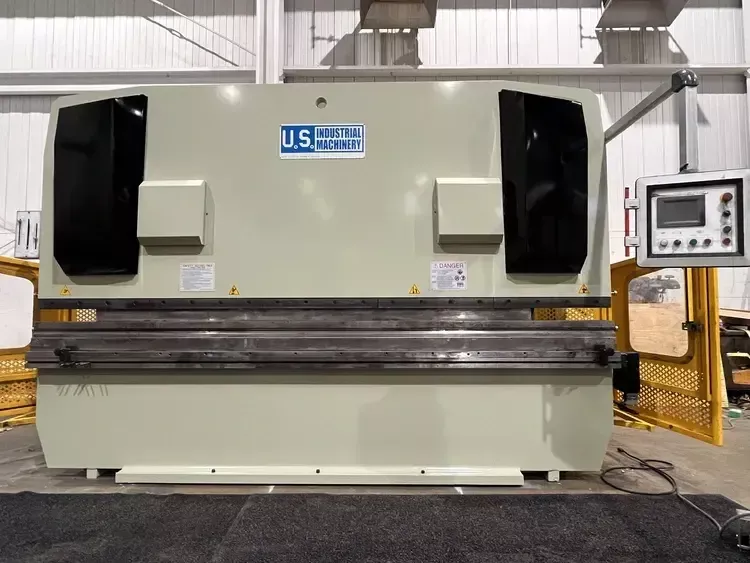

U.S. Industrial US250 250 Tons

113020191
Press force: 250 Tons
Type: Hydraulic
Overall length: 157"
Between housings: 124"
Stroke: 3.14"

Working pressure: 250 Tons
Length of working table: 157.4"
Distance between housings: 124"
Throat depth: 15.7"
Stroke adjustment of ram: 3.14"
Ram travel: 7.8"
Open height: 22"
Rapid ram travel speed: 2.4" / Sec.
Rapid ram retreat speed: 2.0" / Sec.
Backgauge travel: 24"
Pressing speed: Dependent on tool load
Hydraulic oil capacity: 108 Gal.
Motor horsepower: 25 HP
Net weight: 39,683 lbs
Length: 179"
Width: 75"
Height: 108"
4 Axis CNC controlled, auto crowning
Controls bend angle and backgauge position
6" LCD touch screen
Graphic programming, 10 bends per program/cross-section
Tool library
Metric/inch switchable
Auto bend sequence
Auto retract of backgauge
Spread length
Interference bend alert
Calculated bend allowance
Programmable ram dwell
Control stores thousands of programs
USB port, Ethernet, RS232 for program backup
Sick Model 4000 light curtain system
CNC controlled third axis (back gauge height)
CNC controlled mechanical auto crown
Flush floor, no pit required
