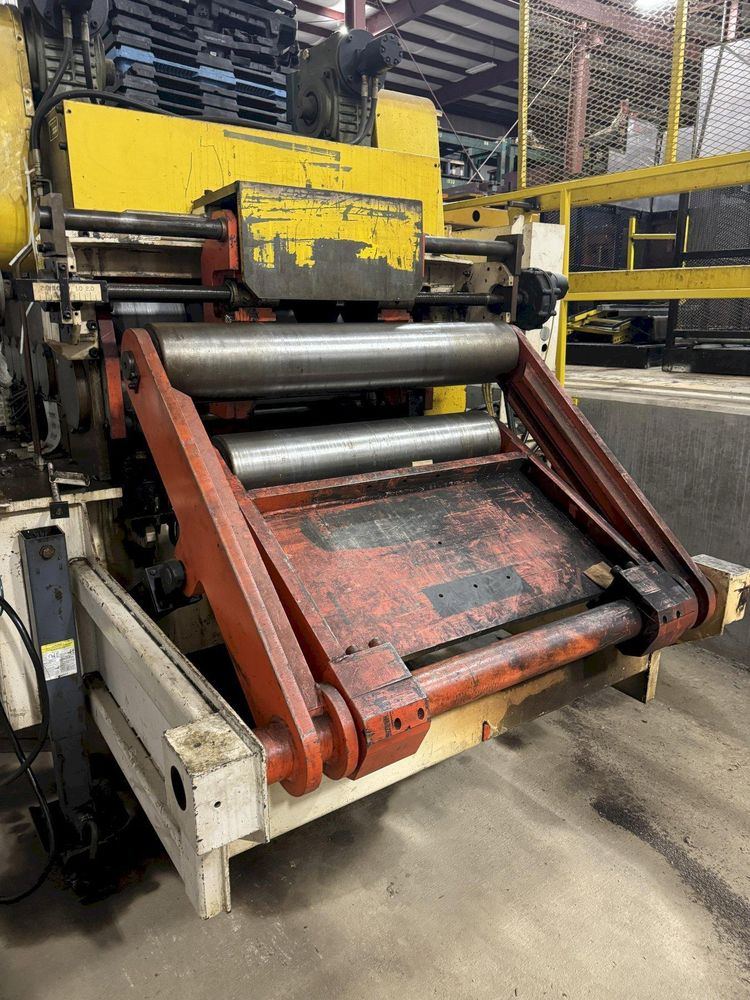

U.S. MACHINE CO M24 Coil-Feedline

Coil weight capacity 30,000 lb
Coil outside diameter range 30" to 72"
Coil inside diameter range 20" to 24"
Expandable coil ID range 19.5" to 24.5"
Stock width range 6" to 42"
Cold rolled steel capacity at 50,000 yield: 0.030" to 0.075" x 42" wide
Hot rolled steel capacity at 50,000 yield: 0.075" to 0.312" x 42" wide
Hot rolled steel capacity at 50,000 yield: 0.510" x 18" wide
HSLA steel capacity at 70,000 yield: 0.38" x 30" wide
Accuracy ±0.010"
Number of rolls 9 (4 over 5)
Passline power adjustment 48" ±4"
Feed roll diameter 8" nominal, satin finished, backed up
Entry and exit pinch rolls included
Pinch roll diameter 12"
Hydraulic power-adjusted side guide
AC vector drive power
Voltage 440V, 3-phase, 60 Hz
Motor 150 HP Reliance Electric
