UHLMANN UPS 1020, Blister Packer

• Format range: length 122 mm x width 210 mm
• Forming depth: max. 12 mm
• Preparatory film feed stroke: 50 - 122 mm
• Output: 15-60 strokes/min - max. 300 strokes/min
• For forming materials: PVC or PVC/VDC and aluminum foil
• Foil width (including foil): 90 mm - 200 mm
• Maximum coil diameter: 500 mm foil and 300 mm aluminum

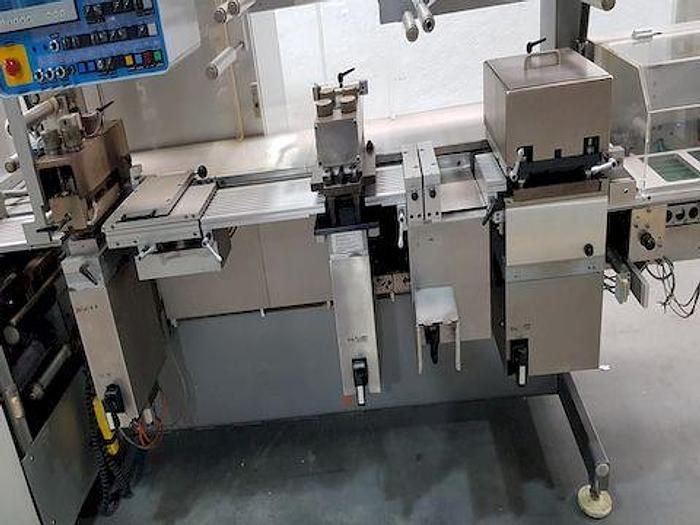

• Automatic vibratory feed with brush box (both visible in the photos)
• Fill inspection with touch detectors
• Contact heating
• Password-controlled passage
• Punching station
• Blister ejection error
• Connection strip to the cartoner (not shown in the photos)
• MC control
• Eberle PLS 514 system
• 1 x blister format set for 85x36 (2 x 5 tablets, 5 mm diameter x 2 mm height)
• Electrical connection 220/380V/50Hz
