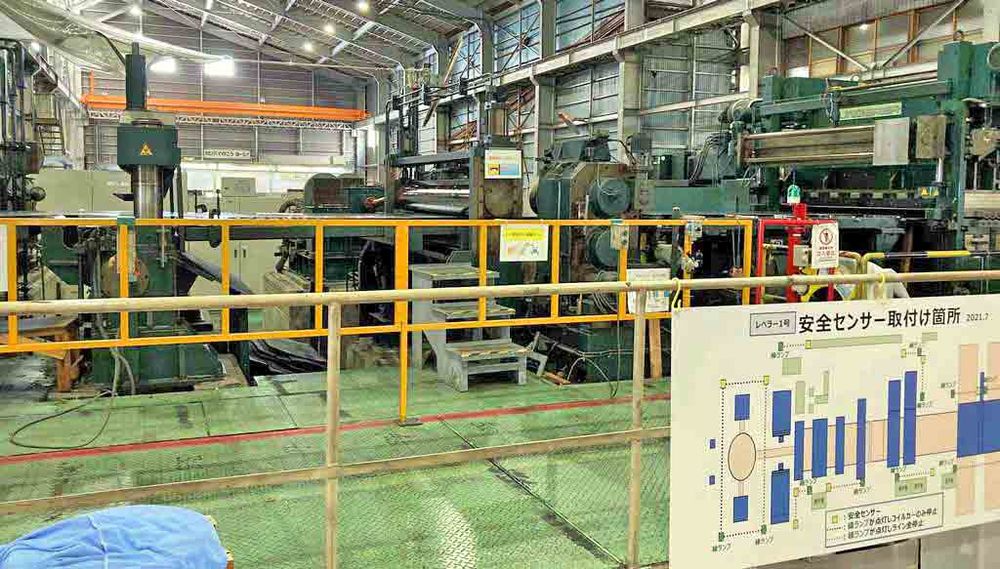

Ungerer Cut-To-Length Line Max. tensile strength: 100,000 PSI

Ref : 2798264-3-MT

Condition : Used

Manufacturer : Ungerer

Model : Cut-To-Length Line

Short Description : Max. tensile strength: 100,000 PSI

Year(s) : 1990

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Material thickness: 1.6 – 6 mm (0.063" – 0.236")
Material width: 800 – 2100 mm (31.5" – 82.7")
Max. coil weight: 30 ton
Sheet length: 500 – 7400 mm (19.6" – 291")
Max. stack weight: 15 ton
Line speed: 0 – 50 m/min (164 FPM)
Line direction: Left to right

Equipment:
Entry coil car
Double-end expanding mandrel uncoiler
Hydraulic expansion
Sliding base
Brake
Holddown roll
Peeler table
Hydraulic entry crop shear
Double-stub edge trimmer
Entry driven pinch rolls
Scrap winders
Feed table
Precision leveler (17 work rolls, 8 over 9)
DC drive motor
Shear
Runout belt conveyor
Automatic stacker
Powered width adjustment
Powered length adjustment
Side discharge
