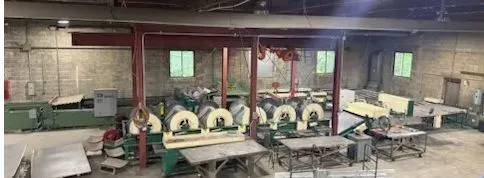

Vicon FULL COIL LINE Maximum coil weight: 15,000 lb per station

Number of stations: 6
Maximum coil width: 60 in
Maximum coil outside diameter: 42 in
Coil inside diameter: 20 in
Straightener rolls: 4
Straightener roll diameter: 4 in
Beading capacity: 18 gauge
Beading rings: 5
Notching dies: 2 combination V dies
Notching dies: 2 combination Lock dies
Shear capacity: 16 gauge mild steel
Length tolerance: ±1/32 in
Pittsburgh lock capacity: 18 gauge mild steel
Snap lock capacity: 20 gauge mild steel
Minimum cleat edge leg length: 4 in
TDX rollformer capacity: 18–26 gauge
Rollform stations: 16 per head
Hydraulic brake length: 5 ft
Minimum duct size: 6 × 6 in (unlined)
Maximum wrap perimeter: 120 in
Condition: Very good

Six-position underfed coil cradle
Pneumatic backup wheels
Roller track guiding system
Coil drum assemblies
Hydraulic coil drive unit
Powered infeed guide ramp
Pinch drive rolls
Automatic rectangular duct blanking system
Computer-controlled servo drive
Heavy-duty straightener
Pinch feed rolls
Beading station
Hydraulic notching unit
TDX notching
S & Drive cleat notching
Hydraulically actuated shear
Four-sided shear blades
Lockseam system
Pittsburgh lock forming
Snap lock forming
Button punch
Automatic transfer and feed table
Dual-head cleat edge former
Dual-head TDX rollformer
Liner unit
Automatic insulation application
Adhesive application
Fastener application
Five-head pinspotter
Full wrap automatic brake system
Infeed table
Outfeed conveyor
Front gauge system
Forms L ducts
Forms U ducts
Forms full-wrap ducts
