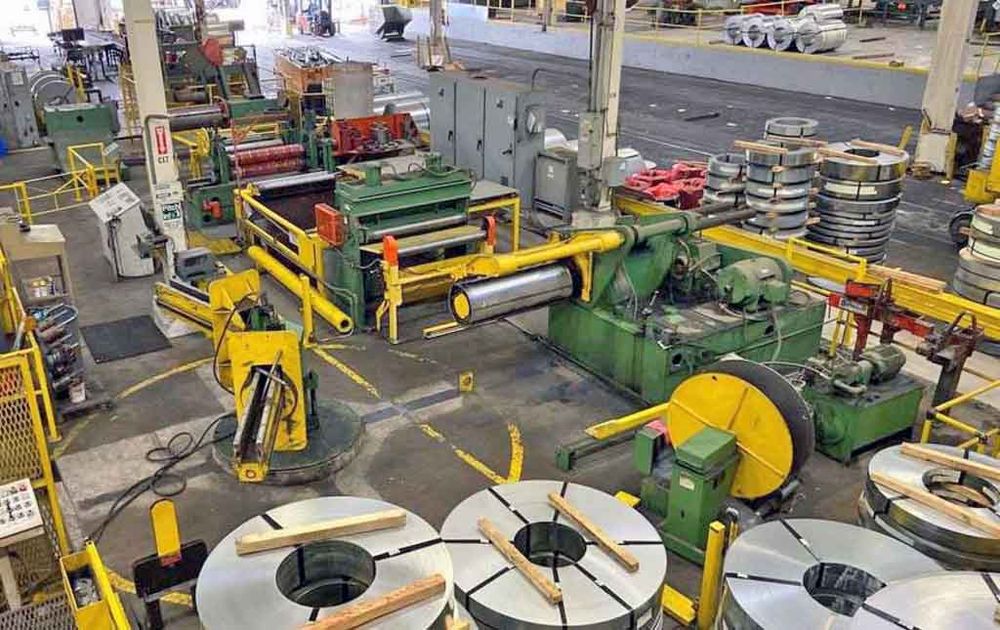

Paxson SLITTING LINE Material Width Capacity: 52 in

Maximum Coil Weight: 30000 lb
Coil Size: 20 in ID x 72 in OD
Line Configuration: Loop Type
Driven Slitter
Line Direction: Left to Right
Line Speed: 350 - 400 fpm
PLC Control System
Control Pulpit
Control Upgrade: 2009

Entry Coil Car
Above-Ground Type
L-Type Design
Self-Contained Hydraulics
Motor Power: 7.5 HP
Motor Speed: 1750 rpm

Uncoiler
Expanding Mandrel
Hydraulic Expansion
Water-Cooled Drag Brake
Sliding Base
Powered Hold-Down Arm

Hydraulic Peeler Table
Pinch Rolls

Slitter Heads
Arbor Face Width: 52 in
2 Drop-In Heads
Arbor Diameter: 6 in
Entry Side Guides
Slitter Drive Motor: 75 HP
DC Drive Motor
Motor Speed: 1750 rpm

Looping Pit

Cross Over Table

Scrap Winder
Self-Dumping Type
Oscillating Scrap Guide
Hydraulic Motor Drive

Loopco Tension Stand
Drag Board Type
Air Cylinders for Pressure
Entry Separator Tooling Bar
Exit Passline Roll

Recoiler
Drum Diameter: 20 in
Drum Face Width: 54 in
Manual Expansion and Gripper
Hydraulic Push-Off
Overarm Separator
Foote-Jones Reducer
Reducer Ratio: 16.692:1
Recoiler Motor Power: 60 HP
AC Motor
Motor Speed: 1770 rpm
Belt Drive to Reducer

Exit Coil Car
Deck Width: 48 in
Self-Contained Hydraulics
Hand Pendant Control

Braner Exit Turnstile
Two Arms
Powered Rotation
Push-Offs
