Paxson PAXSON CUT TO LENGTH LINE

Max Strip Width: 60"
Strip Thickness Range: 0.020" – 0.135"
Coil Inner Diameter: 20" – 24"
Maximum Coil Weight: 40000 lbs
Line Direction: Right to Left

Above floor entry coil car
Hand pendant control
Self-contained hydraulic power unit

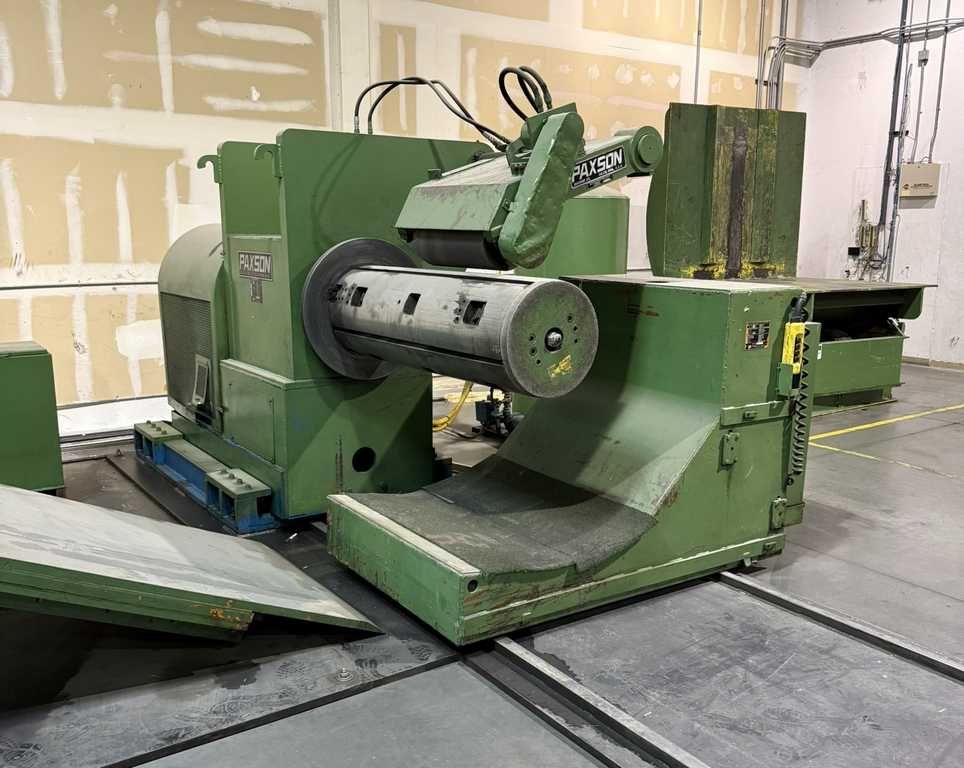

Mandrel type uncoiler
Overarm holddown
Sliding base uncoiler
Water-cooled brake
Hydraulic motor feed-up
Hydraulic lift and extend peeler table
6-high precision leveler
1.750" diameter x 74" face rolls
Powered entry pinch rolls
8 backup flights
6 motorized backup flights
125 HP DC leveler motor
Loop table
Entry side guides
Full width feed rolls
Exit paper applicator
30 HP DC feed motor
Mechanical high-speed shear
Manual blade gap adjustment
30 HP DC shear motor
Air clutch and brake
Automatic flipper arm stacker
Powered width adjustment
Powered length adjustment
Non-scratching roller supports
Maximum stack length 20'
Mechanical screw jack lift table
Powered in-line eject conveyor
Powered exit runout conveyor
Main operator control panel
Water cooler
Hydraulic power unit
Electrical controls and drives
Air compressor
