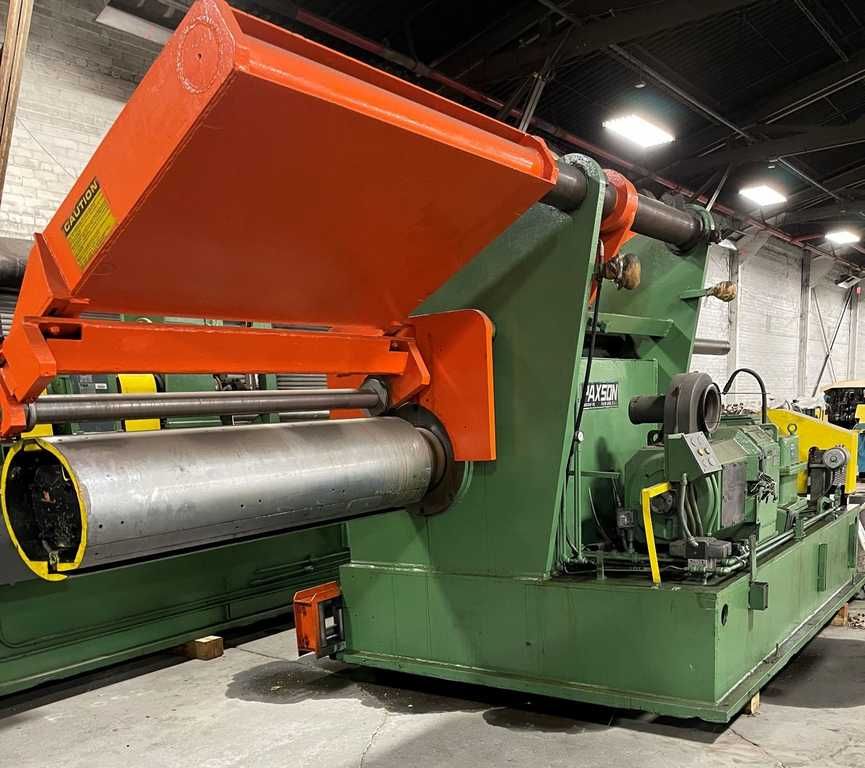

Paxson Slitting Line Driven head loop-type slitting line

Coil weight capacity: 60,000 lb
Coil inner diameter: 20 in
Coil inner diameter: 24 in
Coil outer diameter: 72 in
Line direction: left to right
Slitter arbor diameter: 9 in
Slitter motor power: 75 HP
Slitter motor speed: 650 rpm
Slitter motor speed: 2100 rpm
Slitter motor voltage: 500 V
Recoiler drum diameter: 20 in
Recoiler motor power: 100 HP
Recoiler motor speed: 650 rpm
Recoiler motor speed: 1950 rpm
Recoiler motor voltage: 500 V

Entry coil car
Above-ground L-type coil car
Self-contained hydraulics
Electric cable reel
Pushbutton control station
Double cone uncoiler
Hydraulic motor threading drive
Water-cooled brakes
Slide bases
Peeler table
Hydraulic cylinder operation
Pinch rolls
Adjustable side guides
Two slitter heads
Drop-in slitter heads
Two scrap winders
Motor-driven scrap winders
Self-dumping scrap winders
Tension stand
Drag board type tension stand
Recoiler
Hydraulic clamp and expansion
Hydraulic push-off
Overarm separator
Blower
Exit turnstile
Two-arm turnstile
Hydraulic push-off
Hydraulic power units
Tooling included
Spare parts included
Controls updated
Line removed and in storage
