Paxson Slitting Line Coil Weight Max: 40000 lb

Coil Width Max: 60 in trimmed, 62 in untrimmed
Thickness Range: 0.015 in to 0.250 in
Material Types: Hot rolled steel, cold rolled steel, HRPO, galvanized
Strength Limit: 50000 PSI shear strength
Yield Strength Limit: 40000 PSI yield strength
Entry Coil I.D.: 20 in to 24 in
Exit Coil I.D.: 20 in
Coil O.D. Range Entry: 42 in to 72 in
Coil O.D. Range Exit: 42 in to 72 in
Line Speed: 2-speed operation, 130 FPM and 390 FPM at bare drum
Line Direction: Right-to-left
Mode of Operation: Pull-through and drive assist

Entry Coil Car
L-type entry coil car
Self-contained hydraulic power unit entry car
Hydraulic lift and travel entry system

Uncoiler
Hydraulic expansion mandrel 20 in to 24 in
4-segment pumpkin tooth mandrel
Powered overarm hold-down
Slide base uncoiler
Hydraulic motor feed-up system
Water-cooled brake

Hydraulic Peeler Table Included

Slitter Entry Unit
Driven pinch rolls
Independent manual adjustable roller side guides
Roller crop shear

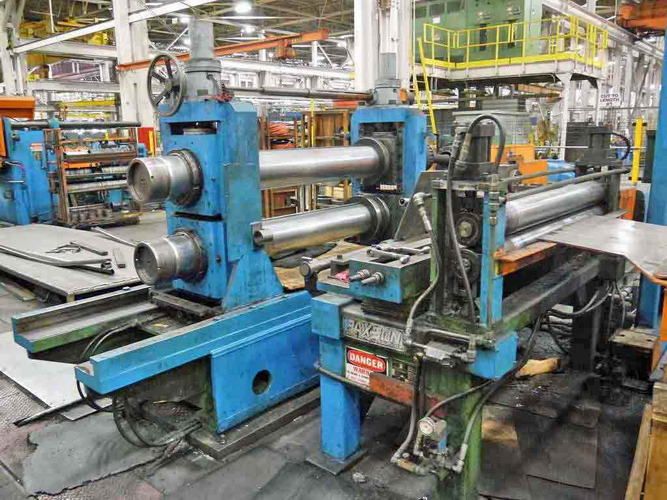

Slitter Head
Single removable slitter head
Over-arbor outboard travel up to 36 in width
150 HP DC drive motor
DC motor speed: 1750 / 2000 RPM
Reducer ratio: 60.7:1
Arbor diameter: 10 in
Pinion stand drive system
Hydraulic lift threading table

Recoiler
Drum face: 20 in diameter × 65 in width
Hydraulic grip and expansion recoil drum
Overarm separator
100 HP DC recoil motor
DC motor speed: 650 / 1950 RPM
Integral reducer ratio: 24:1
Two-speed transmission drive 1:1 and 3:1

Exit Coil Car
L-type exit coil car
Hold-down arm system
Keeper arms
Strapping slots in base
Self-contained hydraulic power unit exit car
Hydraulic lift and travel exit system

Two-arm turnstile
Power rotation turnstile

Two heavy-duty scrap winders
Opposed cone scrap winding
Level wind system
Automatic dump system
Hydraulic motor drive scrap winders

Tooling Package
Large quantity of slitter knives
Spacers and rubber strip tooling included

Operator control panels included
Hydraulic power units included
