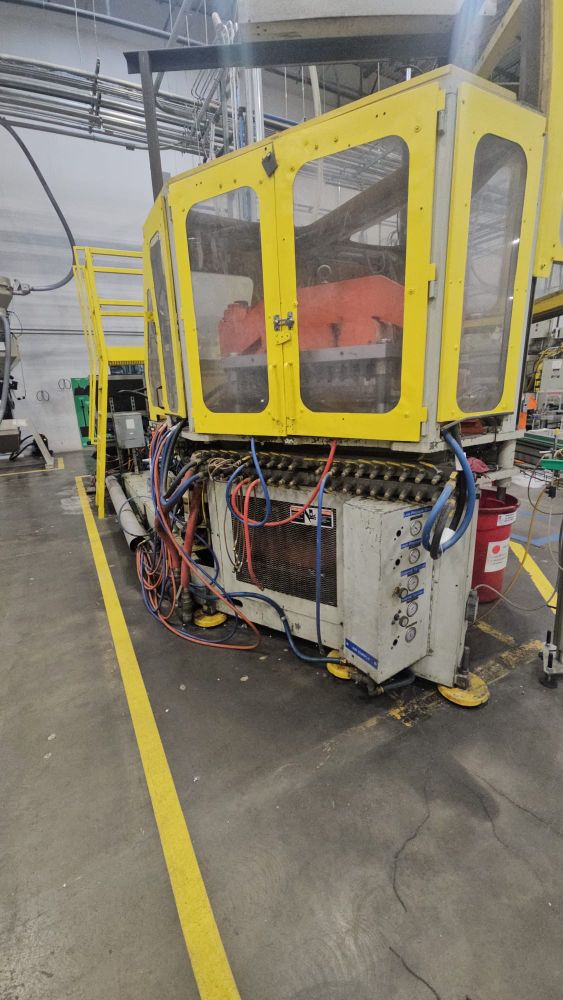

Uniloy 122-3 Injection Blow Molding Machine 122 T

Clamp force total- 122 tones
Clamp force blow side- 19 tons
Clamp force injection side- 103 tons
Maximum stack height- 22″
Maximum die set width- 38″
Maximum daylight- 15″
Trigger bar length- 34″
Swing radius- 27.75 inch
Screw diameter- 2.5 inch
Extruder L/D ratio 25 to 1
hydraulic pump motor size- 100 horse power
Air cooled barrel
Electrical specifications- 460 volts 3 phase 60 cycles
Machine dimensions- 192.5″ Length x 91″ Wide x 116″ H includes hopper
Machine weight- approximately 30,000 pounds
Controls- Siemens Model Somatic 505 PLC
Condition- in operation and well maintained
