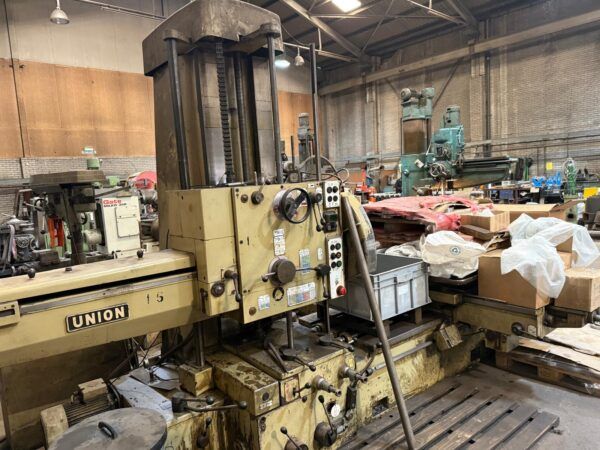

Union BFT 80/2 Horizontal Borer 1,250 rpm
Ref :
2737261-3-GO
Condition :
Used
Manufacturer :
Union
Model :
BFT 80/2 Horizontal Borer
Spindle Size :
-
Spindle Speed :
1,250 rpm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Working Spindle Diameter 80 mm
Tool Holder MT-5 (Morse Taper 5)
Face Plate Diameter 500 mm
Spindle Travel 710 mm
Spindle Speed Range 8 – 1,250 rpm
Facing Head Speed 8 – 200 rpm
Vertical Travel (Z-axis) 1,000 mm
Longitudinal Travel (Y) 1,600 mm
Cross Travel (X) 1,000 mm
Rotary Table 360°
Table Size 1,000 × 1,120 mm
Table Load Capacity 2,500 kg
Digital Read-Out 3-axis DRO (Digital Readout)
Total Weight Approx. 10 tonnes
