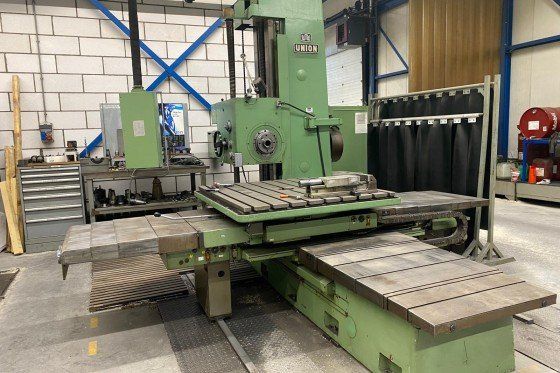

Union BFT 90 3/2 1600 rpm
Ref :
2730283-3-GO
Condition :
Used
Manufacturer :
Union
Model :
BFT 90 3/2
Spindle Size :
-
Spindle Speed :
1600 rpm
Year(s) :
1988
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
UNION BFT 90 3/2
Year: 1988
4-axis Heidenhain digital readout
Ballscrews in all axes
Face plate diameter: 460 mm
Face plate stroke: 180 mm
Coolant system
X-axis travel: 1600 mm
Y-axis travel: 1000 mm
Z-axis travel: 1000 mm
W-axis travel: 710 mm
Table length: 1400 mm
Table width: 1250 mm
Table load: 3000 kg
Spindle speed: 1600 rpm
Spindle power: 11 kW
Spindle taper: ISO 50 / BT / MK
Feed rate X-axis: 5000 mm/min
Feed rate Y-axis: 5000 mm/min
Feed rate Z-axis: 5000 mm/min
Feed rate W-axis: 2000 mm/min
Length: 3400 mm
Width: 3400 mm
Height: 3500 mm
Weight: 9800 kg
