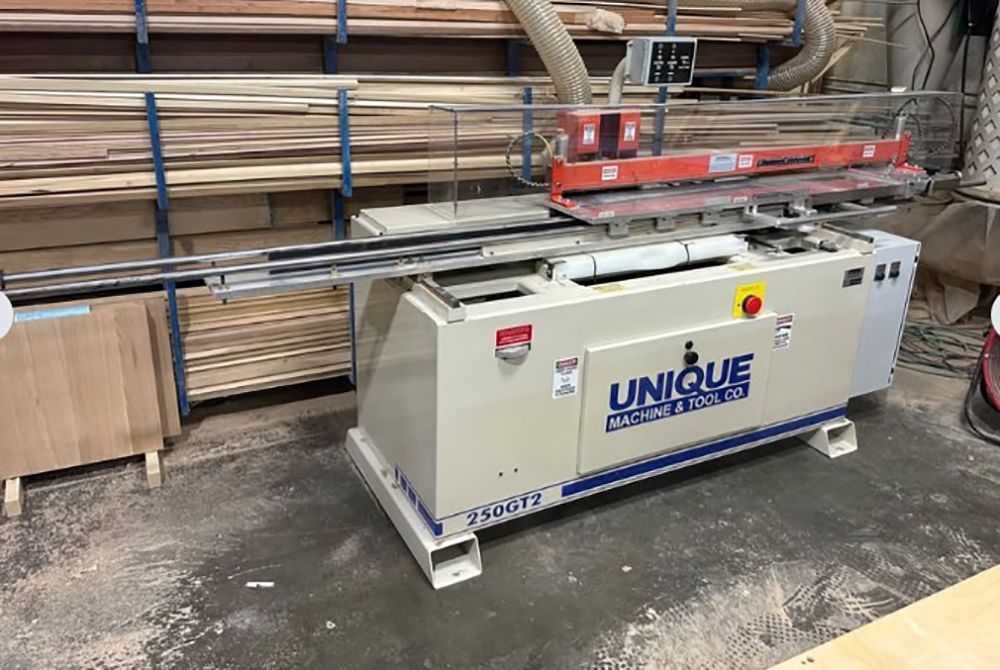

Unique 250GT2

Raised Panel Door Machine
The Unique Model 250GT2 is a professional-grade, all-in-one woodworking machine designed
to manufacture a complete five-piece raised panel door—including rails, stiles, and panels—in under two minutes.
As the fifth generation of the 250 series from Unique Machine & Tool,
it is engineered for high-volume production in both small custom shops and large factories.

Features & Specifications:
- 10 HP Direct Drive Motor: A powerful variable-speed motor (up to 12,000 RPM) provides consistent power for heavy workloads in hardwoods and composite materials.
- Turret Stop System: Features a 3-position pneumatic turret (expandable to 5 positions on the XS model)
that allows operators to quickly switch between cope, rail, and panel profiles without changing tools.
- X/Y Sliding Table: A free-floating table with a pneumatic hold-down system enables safe,
accurate positioning for both straight and arched (cathedral) top doors.
- Increased Capacity: The standard model handles parts up to 55" long, with an optional 65" capacity.
Extended clamp cylinders can increase maximum part thickness from 1-1/4" to 2-1/4" for entry door production.
- No Pre-Bandsawing: Arched panels can be machined directly without the need for prior bandsawing, significantly reducing labor.
