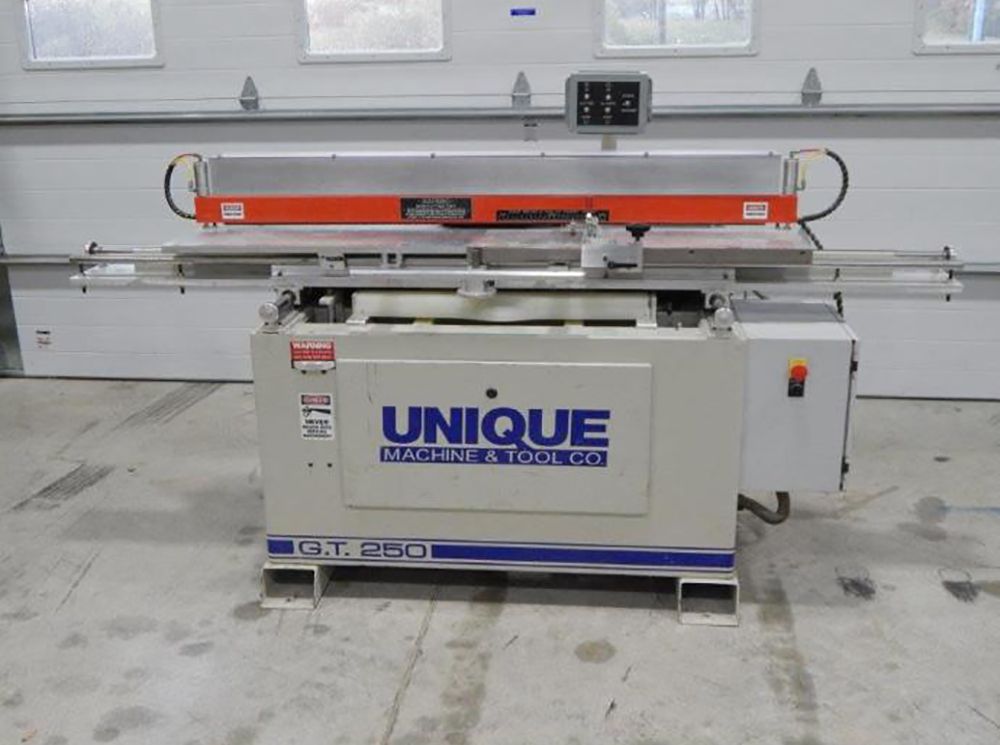

Unique GT250

Used Raised Panel Door Machine
240V 3PH.

Specifications:
Motor: 10HP Direct Drive
Stacked Spindle: 1-1/4" Diameter; 5-1/4" stacking capacity
Air required: 90psi
Dust Collection: 5" dust port, 1, 000 CFM
Machine weight: 1, 400 lbs
Work height: 36"
Footprint: 130" Width x 40" Depth
Max. cut length: 50"
Max. arch width: 24"
Max. arch height: 2" or Custom up to 3-7/8"
Max. material thickness: 1" or an optional 2-1/2"
Max. material width: 1-1/2" plus the depth of cut
