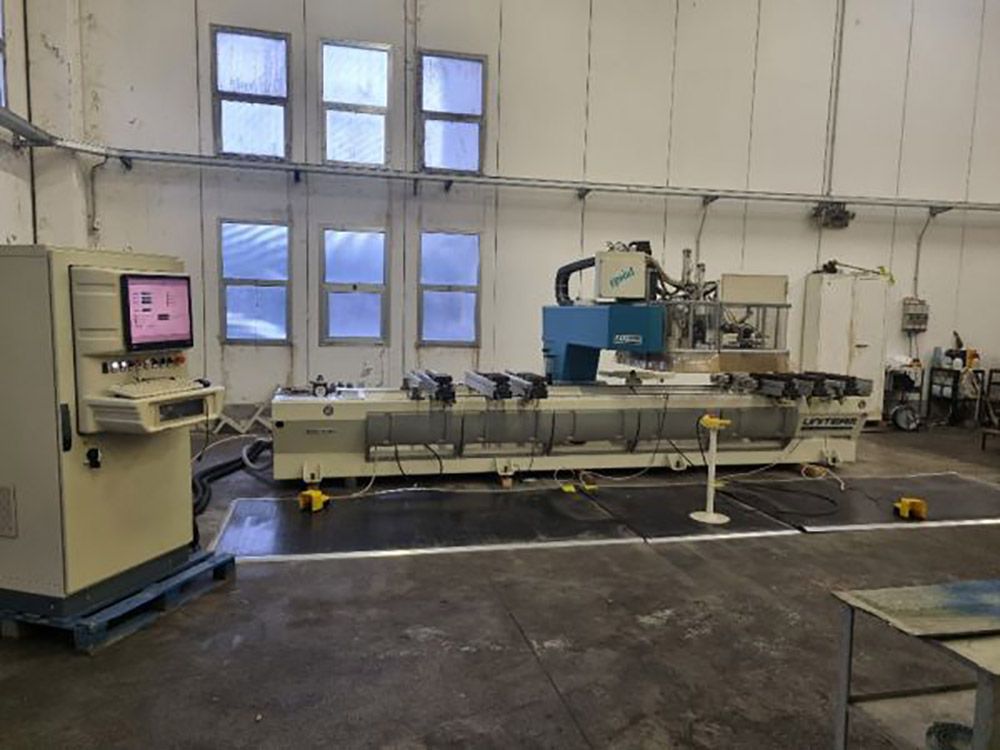

Uniteam SPRINT 4012-M 4-axis

4-axis CNC machining center
very complete configuration suitable for the production of furniture, doors and windows
CE standard machine
n. 4 controlled axes
axis travels: X 4870 mm - Y 1840 mm - Z 250 mm - C 360° (for the management of angular heads)
max axis speed: X 85 m/min - Y 85 m/min - Z 25 m/min
working area 4200x1300 mm
n. 6 suction cup bars with n. 3 suction cups each
n. 4 panel lifting bars
n. 6+2 reference stops
n. 6 excludable vices
100 m3/h vacuum pump
laser pointing
9 kw (12 hp) electrospindle - max rotation 18000 rpm - HSK63F connection
double automatic tool changer (8 places on the head edge + 15 places on the Y edge)
HSK63F angular head with variable inclination
independent angular head tip-blade with pneumatic inclination 0/8° - 3 kw (4 hp) motor
independent horizontal motor 5.6 kw (7.6 hp) - max rotation 18000 rpm
drilling unit with 14 vertical tips - 2+2 and 1+1 horizontal - 3 kw (4 hp) motor
n. 2 HSF63F tool holders supplied
TPA Albatros numerical control (updated in 2018) with remote control panel
automatic centralized lubrication
front sensitive mats + perimeter metal fence
user manuals + wiring diagram + CE certificate
installed machine size 7500x3800x2350h mm
overall transport size 13500x2400x2400h mm
overall weight 5000 kg
