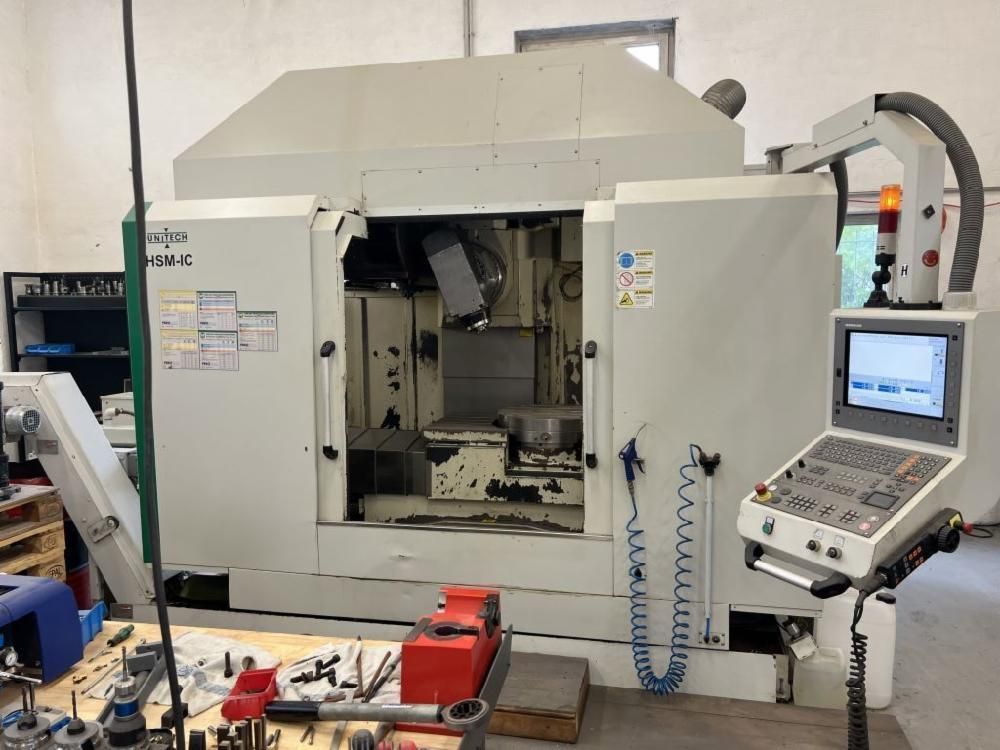

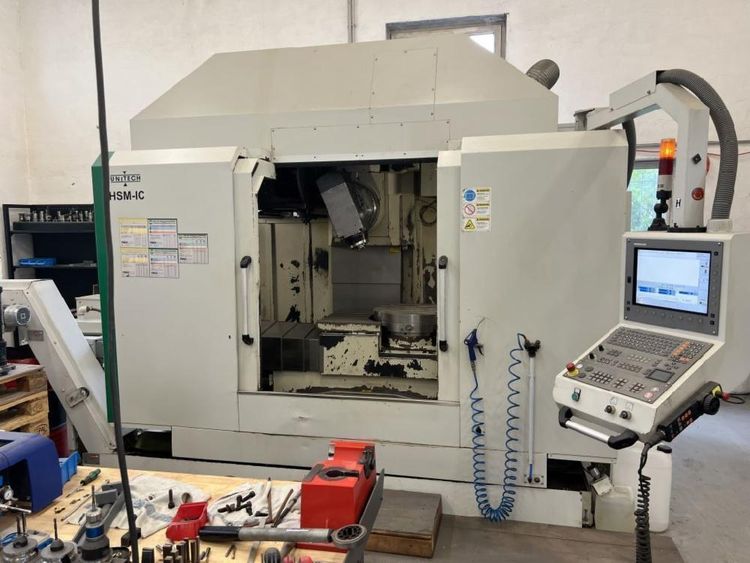

Unitech HSM – IC 5 Axis

X-axis travel: 1080 mm
Y-axis travel: 610 mm
Z-axis travel: 810 mm
Feedrate up to: 30,000 mm/min

5-axis simultaneous machining
Rotary table diameter: 600 mm

Control: Heidenhain iTNC 530
Glass scales on X axis
Glass scales on Y axis
Infrared measuring system
Zero-point measuring system on rotary table
Zero-point clamping system integrated in rotary table

Table size: 1100 x 600 mm
Table load capacity: 500 kg

Spindle speed up to: 15,000 rpm
Tool holder: BT 40
Spindle overhaul completed in 2025
Spindle hours after overhaul: 0 h

Tool magazine capacity: 40 tools

High-pressure coolant through spindle: 60 bar
Compressed air through spindle

Chip conveyor
