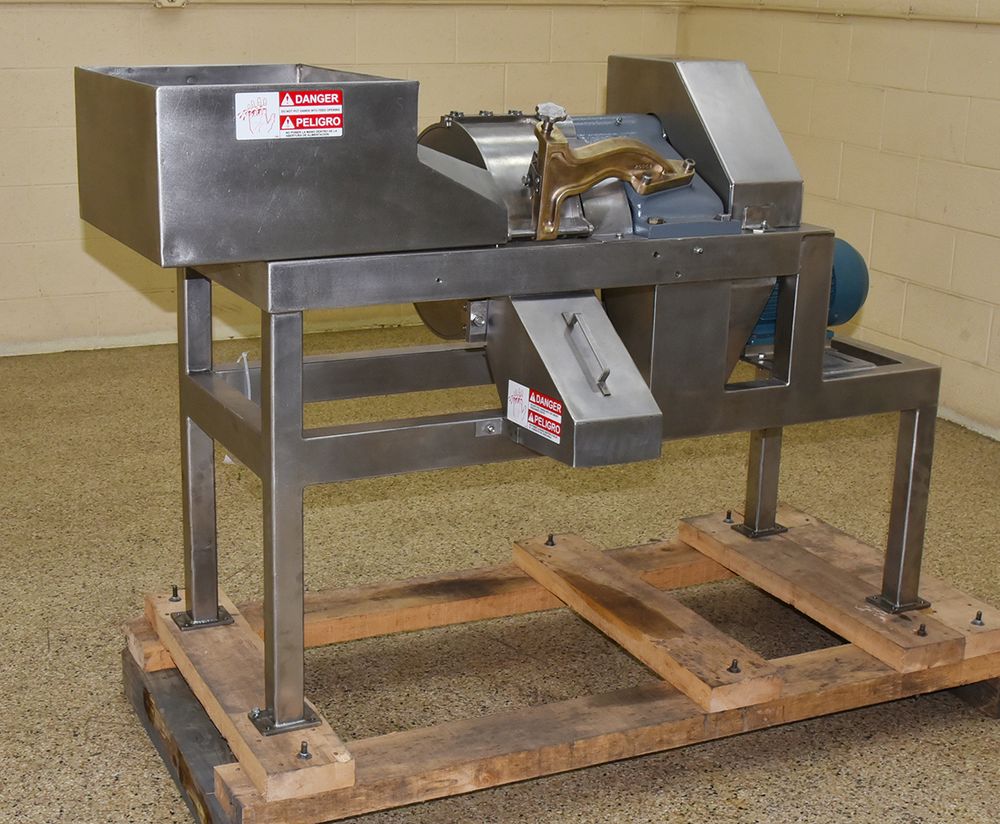

Urschel GKS SLICER

SLICER, for flat or crinkle slice cuts

SPECIFICATIONS per manufacturer literature:
• Slice thickness easily (knob) adjustable for slice thicknesses from 1/16 inch(1.6mm) up to 5/8 inch (16mm).
• Accepts product input up to 5.5 inches (140mm) in any dimension. Larger products must be precut. Large heads of cabbage, for example, must be quartered before slicing.
• The GKS SLICER can cut either flat or corrugated / crinkle slices.
• Crinkle cuts made with the Model GKS will have 3 1/3 crinkles to the inch, with a depth of .070 inch (1.8mm).
• This cutting machine is for industrial food processing applications, with capacity for 3,000 to 36,000 lbs per hour depending on product and cut size.
• At reduced capacities, this slicer will make slab cuts / sandwich cuts, slicing the full length of oblong products such as potatoes, carrots, and pickles, but the products must not be longer than 5 inches.
• This slicer will not cross-cut elongated products, the Urschel Model OV, which we also have in stock as of this writing, is used for crosscut slicing. Call 315-589-4511 to discuss your particular industrial food process slicing machine specification.
• Some products may need to be frozen or tempered for firmness to be successfully cut with this machine. Call 315-589-4511 to discuss your particular industrial food process cutting machine application.

OPERATION:
• Product is fed thru a hopper into a rotating impeller for high-capacity continuous production.
• Centrifugal force holds product against inside of slice case as impeller blades carry product past slicing knife.
• Distance between adjustable case gate and slicing knife determines slice thickness.
• Slicing case has a corrugated inner surface capable of producing crinkle-cut slices.

FEATURES:
• Food grade sanitary stainless steel product contacts and stainless steel frame.
• Stainless steel 7 inch opening slice shell.
• On/Off control box.
• 2 HP belt drive motor.
• 208/230 volt 3 phase electrical input.
