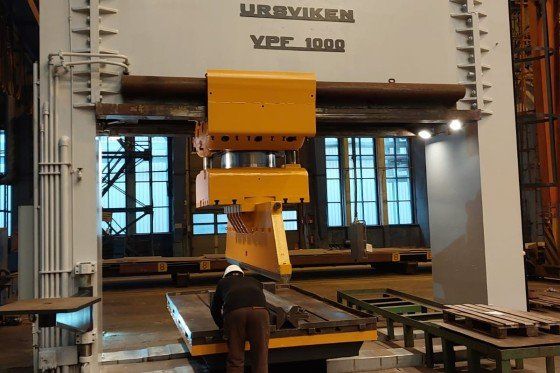

Ursviken VPF 1000/800-5,0 1000 Ton

Ursviken VPF 1000/800-5,0
Control: Siemens Simatic panel
Year: 1970


Renewed in 2015 with Siemens SIMATIC panel and E-Cabinet Rittal
Build in height 2950 mm
Maximum die height 1500 mm
Movable Table & Piston in X-Ways
Large package Die tooling radius 10/20/30/50/60/80/100
Pressing force 210 kg/cm2
Maximum stroke 800 mm
Machine 2350 mm placed in ground


Specifications
Metric US Standard
Capacity Kg
1000 Ton
Distance between column
5010 mm
Table Length
3000 mm
Table Width
2000 mm
Table Height
550 mm
Ram stroke
1450 mm
Approche speed
50 mm/min.
Working speed
5 mm/min.
Return speed
50 mm/min.
Dimensions (Estimate)
Length
0 mm
Width
0 mm
Height
0 mm
Weight
0 kg
