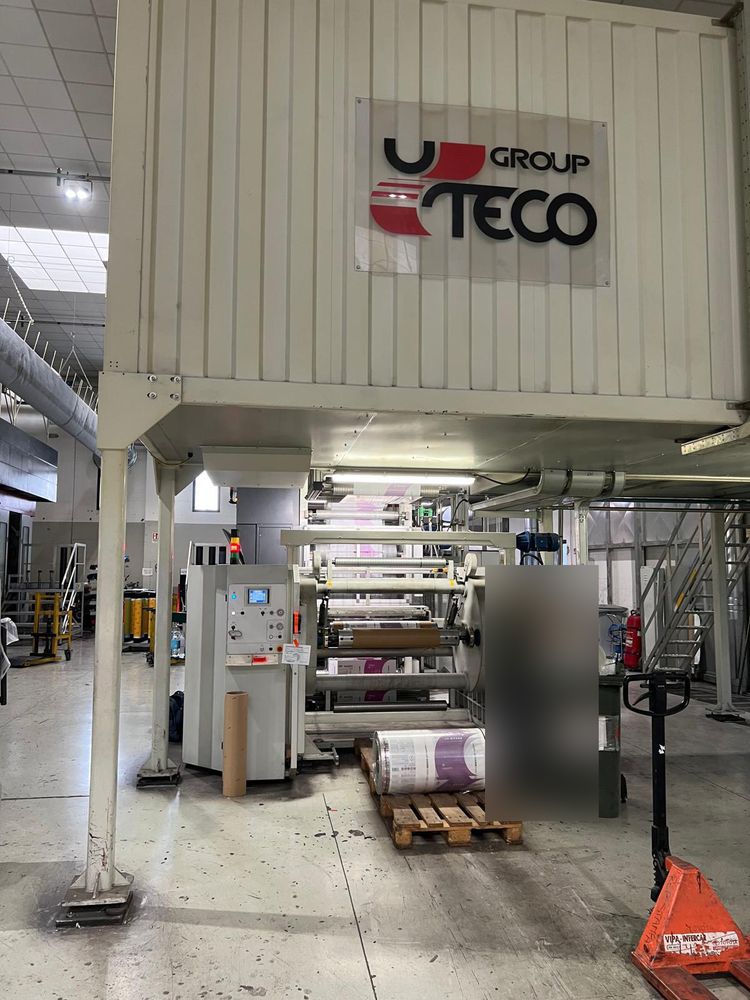

Uteco Crystal 108 10 1000 mm

1.04 Colors (nr) and Type 10 Colors
1.05 Gearless Yes
1.06 Print width (mm) 1000 mm
1.07 Material passage (mm) 1050 mm
1.08 Print development min. – max. (mm) 310 - 850 mm
1.09 Mechanical speed (m/min) 500
1.10 Material pull (kg) 3-30 Kg
1.13 Inks Solvent based and water based
1.14 Doctor blade groups: quantity 10
1.15 Washing of printing units Yes, automatic
1.16 Type of unwinder Automatic
1.17 Max. diameter on unwinder (mm) 1000
1.18 Winder type Automatic
1.19 Max. diameter on winder (mm) 1000
1.20 Heating diathermic oil
1.21 Video camera Yes, BST 100%
1.22 Materials to print Plastic films and paper for flexible packaging
1.23 Further information:
No. 10 Anilox; No. 100 Sleeves
No. 10 Carriers
No. 1 Corona Treatment
N° 10 Viscometers
