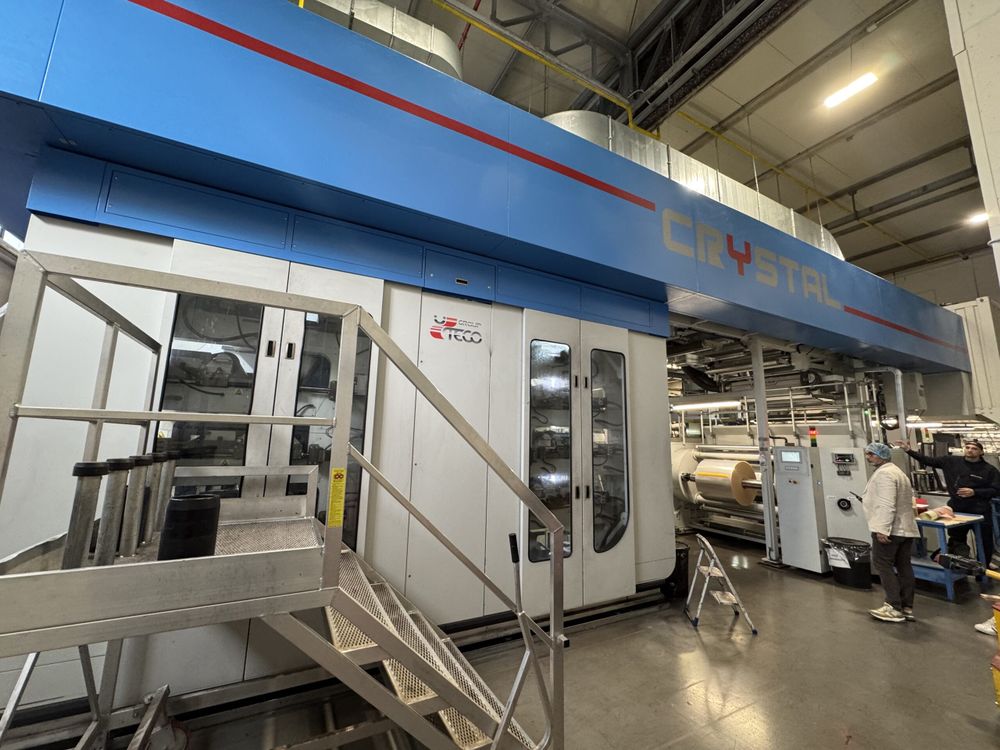

Uteco CRYSTAL 108 MOD. 130 10 1200 mm

1.04 Number of print elements 10
1.05 Gearless Si
1.06 Print width (mm) Max.: 1200 mm
1.07 Material width Min.: 50% Max
Max.: 1250 mm
1.08 Printing speed Max.: 450 m/min
1.09 Mechanical speed Max.: 500 m/min
1.10 Type of material PLASTIC FILMS AND PAPER
1.13 Type of inks used Solvent based and water based
1.14 Print development min. – max. (mm) [N° 10] MIN. 360 – MAX. 800
1.15 Printing possibility [Yes, Fasnacht Viscometers] 10 + 0
1.16 Viscometers Yes, automatic car washes
1.17 [Maximum diameter on the unwinder (mm)] Corona treatment Yes
1.18 Type of unwinder TURRET GEARBOX
1.19 Maximum diameter on the unwinder (mm) 1000
1.20 Winder type TURRET GEARBOX
1.21 Maximum diameter on the winder (mm) 1000
1.22 Heater : GAS BURNERS
1.23 Video camera YES 100% CONTROL, viscometers, washing, automatic register reprinting, kiss and go
