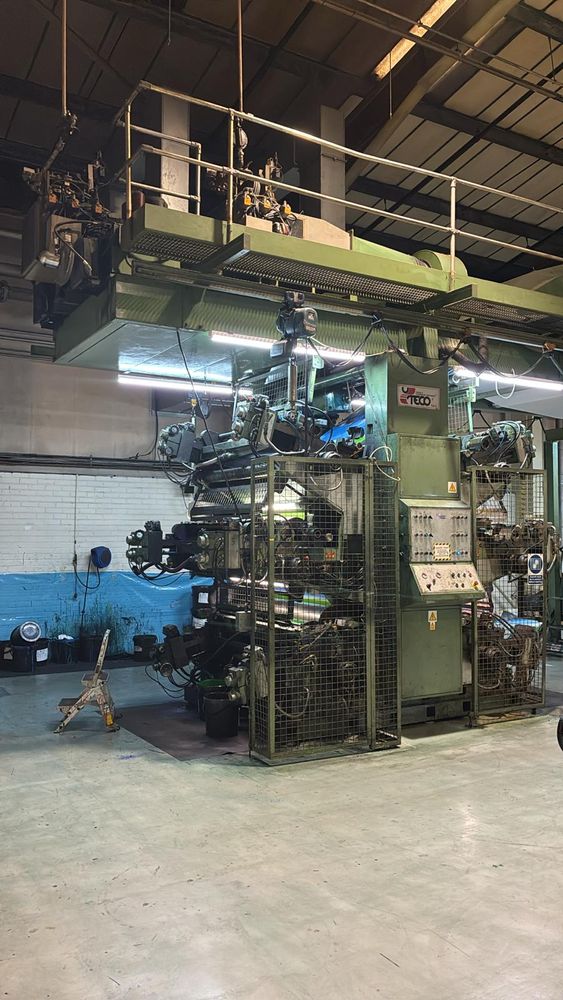

Uteco Jade 641 6 1300 mm

C.I.
6 colors
With gears
Max. material width (50mm more than the model): 1350 mm
Maximum print width equal to the model: 1300 mm
Min – max print length: 400 – 1200 mm
Material thickness: 40 – 150 gsm
Automatic unwinder and rewinder
Owner is not using automatic reel change for unwinder and rewinder (not functional)
Unwinder and rewinder diameter: 1200 mm
Plate thickness: 0.112
Maximum print speed: 300 m/ min.
Reel core diameter: 76 mm
Mechanical speed: 150 – 250 m/min
Camera based BST Eltromat system to monitor defects, quality, register.
Water based inks
Manual or semi-automatic registration and set-up
External shoulder length 550 mm larger than the standard model.
Gas drying system
Printing cylinders (48 in total): 4 x 600, 6 x 840, 6 x 860, 6 x 890, 6 x 910, 6 x 950, 6 x 980, 4 x 1010, 4 x 1040 mm
Geared module 10 mm, helical 3.183 – pressure angle: 200
Electrical power: Volts 200/400v (380v) – 60HZ – 3 phase.
Installed power: volts 298.5kw-current 5AMP.
Overall dimensions LxWxH (with hoods open): 15000 x 3610 x 5500 mm
Visible in production
Availability: October 2026
