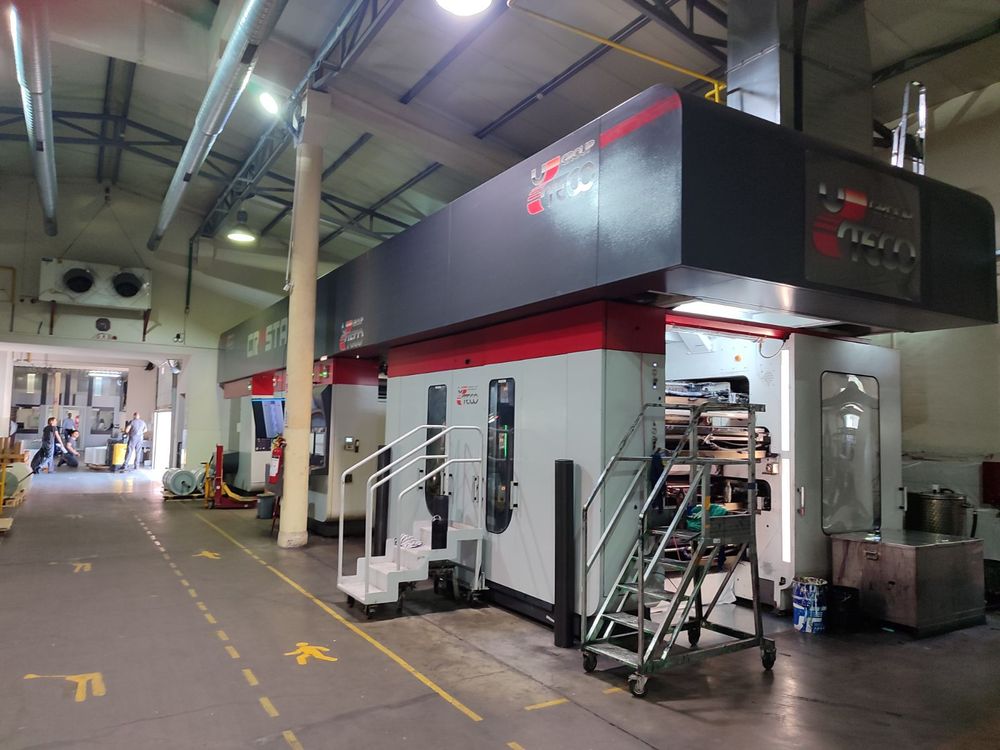

Uteco Crystal 808 mod. 150 8 1500 mm

8 colors (8 + 0)
Central drum
Gearless
Max material width: 1550 mm
Max printing width: 1500 mm
Min – max print repeat: 400 – 850 mm
Max mechanical speed: 500 m/min
Solvent based inks
Materials: full width:
PP 10 – 130 my
BOPP 10 – 60 my
LDPE 20 – 200 my
CPP 20 – 70 my
HDPE 15 – 130 my
PET 12 – 40 my
OPA 15 – 50 my half width: PP 10 – 200 my
BOPP 10 – 60 my
LDPE 20 – 200 my
CPP 20 – 70 my
HDPE 15 – 150 my
PET 12 – 50 my
OPA 15 – 50

Tension range: 2 – 36 kg
Automatic Turret Unwinder ‘TAU-N 1000 for max reel dia. 1000 mm
Corona treatment Ferrarini&Benelli type Polimetal
Reprinting system
Inking and washing system for anilox rolls and doctor blades
Viscosimeters brand Gama
Drying system: gas burner
Printing units positioning Touch&Go
Plate cylinders adjustment Tune&Go:
Linear videocamera for print automatic inspection Progres 500 System Brand Grafikontrol for the print visualisation and 100% web inspection .
The “Inspection” system uses a MATRIX 500 RGB camera for real-time, high-resolution web viewing with motorized zoom and positioning.
It allows comparison between live and master images, supports preset camera positions,
and offers remote assistance for quality control and monitoring.
Automatic pressure adjustment KISS&GO.
Automatic Turret Rewinder type ‘TAR-N 1000’ for max outside diameter of reels: 1000 mm
Fully equipped with sleeves and aniloxes
Aniloxes Included: 1 x 120 v 21, 1 x140 v 15, 1 x 160 v 12.3, 1 x 160 v 11,7, 1 x 200 v 10.1, 1 x 200 v 10,
1 x 240 v 9.7, 1 x 240 v 8.21, 1 x 280 v 8, 1 x 340 v 5.2, 1 x 340 v 5, 1 x 460 v 3.8, 4 x 440 v 3.7
Sleeves included: 8 x 400, 8 x 410, 8 x 420, 8 x 425, 8 x 440, 8 x 450, 8 x 460, 8 x 470, 8 x 480,
8 x 500, 8 x 510, 8 x 520, 8 x 530, 8 x 540, 8 x 560, 8 x 580, 8 x 600, 8 x 620, 8 x 640, 8 x 650,
8 x 660, 8 x 670, 8 x 680, 8 x 700, 8 x 720, 8 x 740, 8 x 760, 8 x 780
Overall dimensions L x W x H: 16080 x 7400 x 5147 mm
Visible in operation
Immediately available
