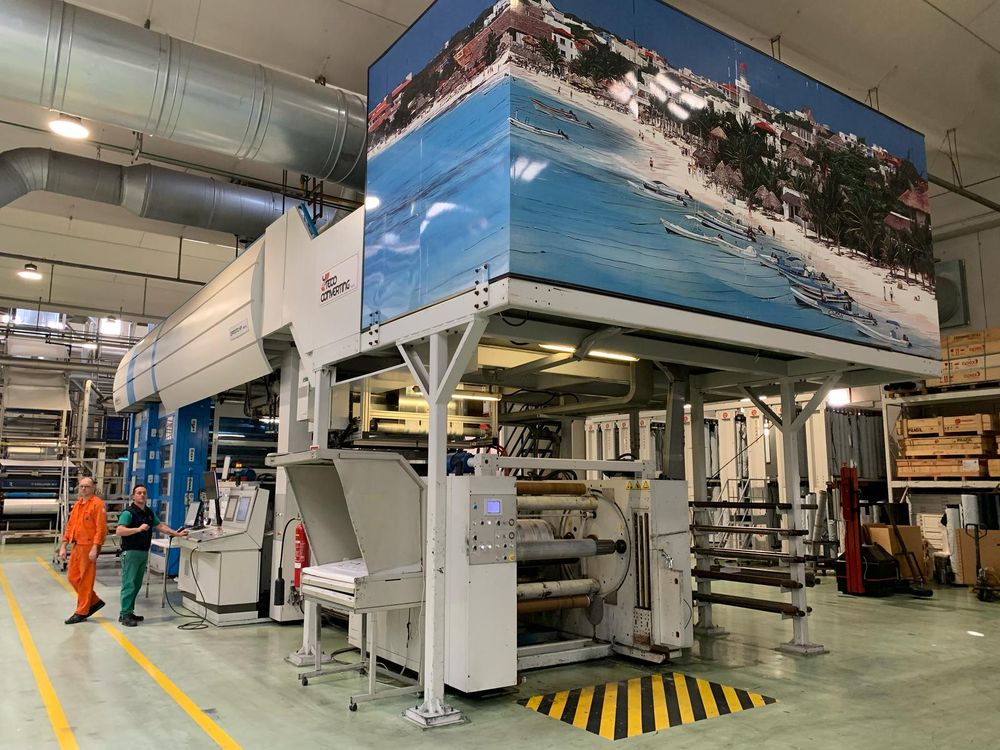

Uteco Diamond HP 108 10 1500 mm

10 colors
Material width: 1550 mm
Print width: 1500 mm
Min-max print repeat: 420 – 870 mm
Unwinder/rewinder: DT-U1000
Max reel dia of unwinder/rewinder: 1000 mm
Internal core: 76 – 152 mm
Automatic drum washing system
Automatic cleaning of printing units
Automatic register BST
Diagonal under the deck for the printing of front and back on half of the maximum width
KISS-AND-GO from Grafikontrol
Defect check 100×100 of graphic control
Anilox: total 16: 1 x 120, 1×130, 2×140, 3×220, 1×260, 2×320, 2×380, 3×420, 1×480 mm
Sleeves: total 50: 10×640, 10×650, 10×660, 10×750, 6×800 mm
Carrier: 10
Ink tanks: 10
Ink stand: 10
Speed: 600 m/min
With automatic washing machine for cleaning clichés
Visible in production
Availability: to be confirmed at the moment of order
