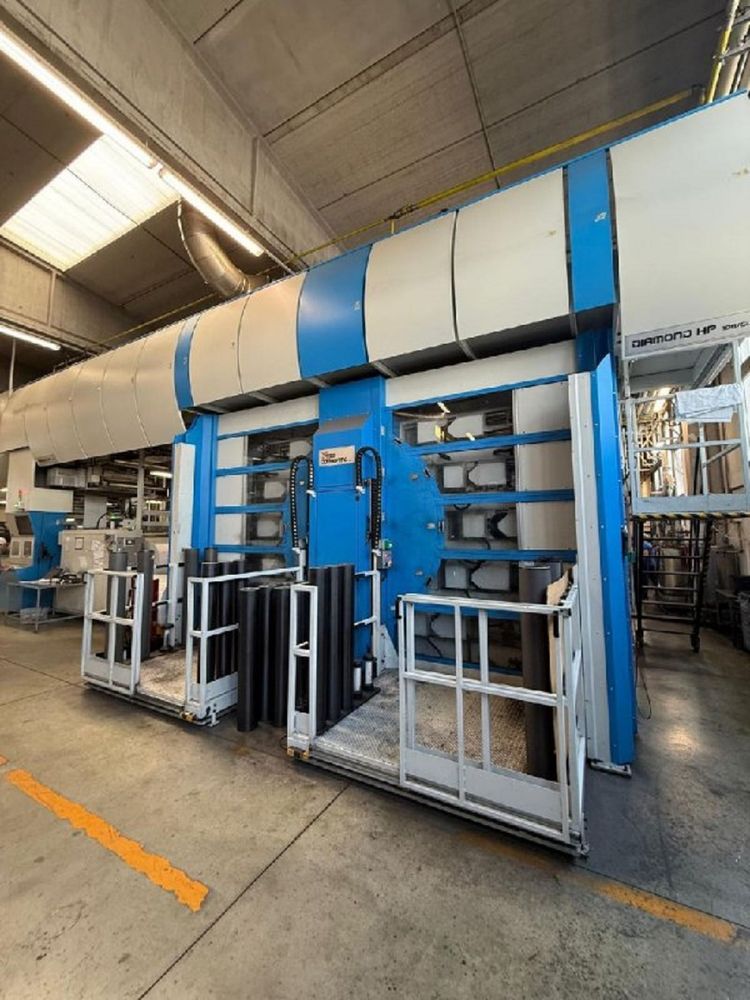

Uteco DIAMOND HP 108 10 1300 mm

Number of colors 10
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1350
Print width (mm) 1300
Min print repeat (mm) 400
Max print repeat (mm) 850
Unwinder type Automatic Turret
Max reel diameter unwinder (mm) 1000
Rewinder type Automatic Turret
Max reel diameter rewinder (mm) 1000
Drying 2 gas burners, 2 zones, thermo oil heat exchangers - 6mt final tunnel. Automatic air recirculation system with LEL control
Videocamera Yes Grafikontrol
Corona treatment Ferrarini Benelli
Web guides yes
Vyscosity control Yes
Washing system yes automatic
Inking system Closed chamber doctor blades and cemaric anilox
Anilox 20
Print Sleeves 60
Note Operator lifting platforms for sleeves change Automatic LEL control
