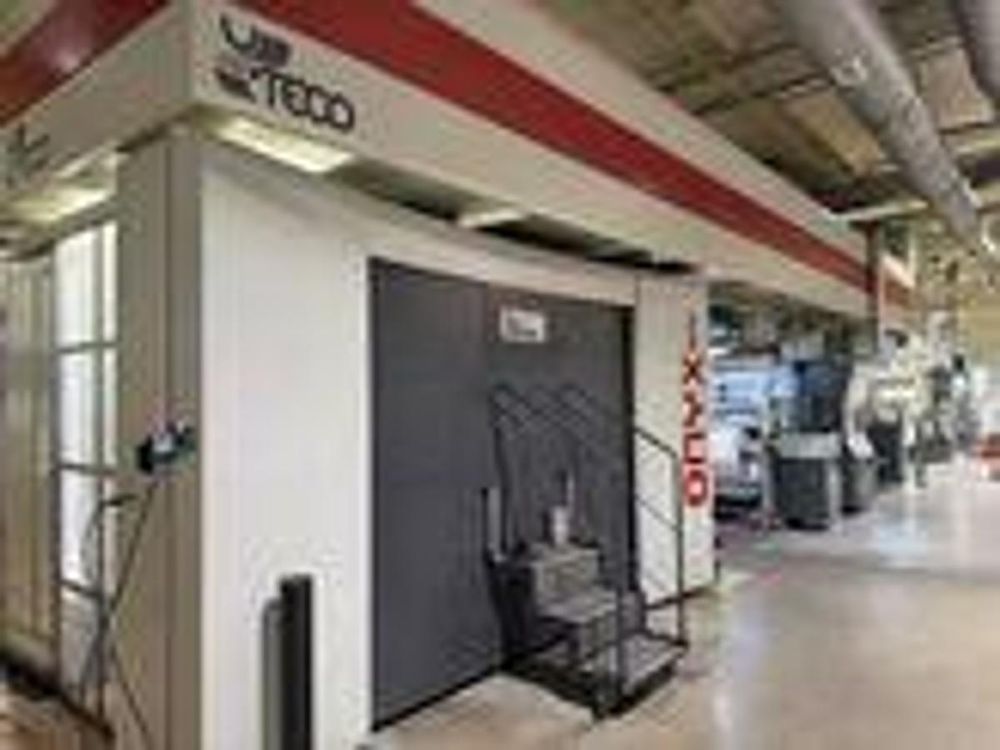

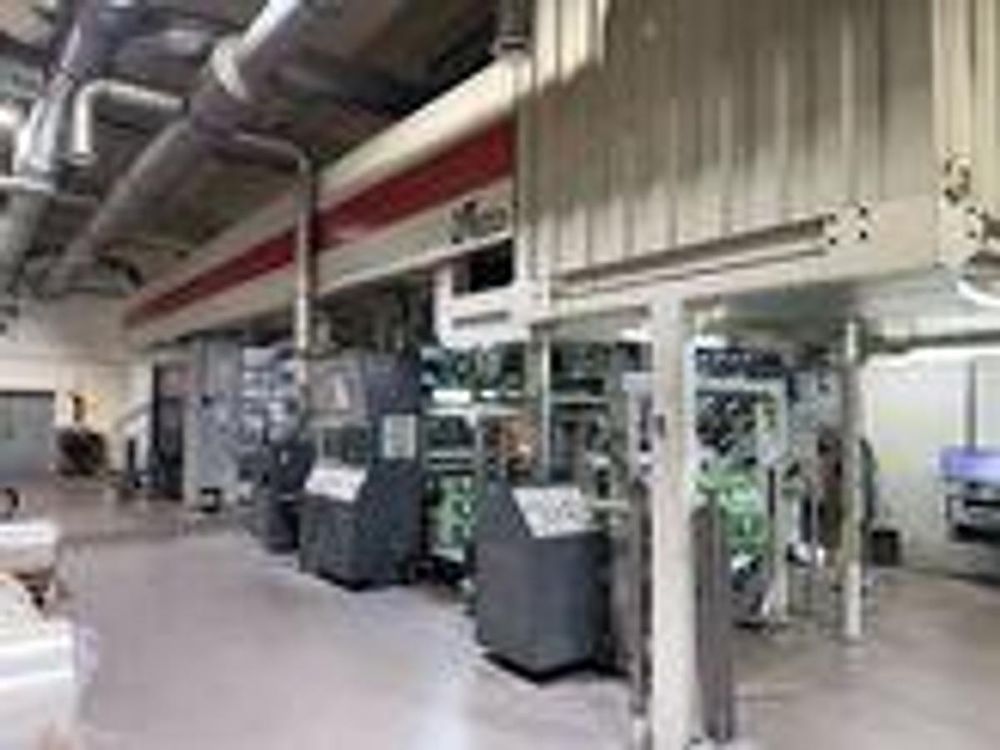

Uteco Onyx 808 8 1000mm
EUROPE (Western and Northern)
Gearless CI Flexo Press
Number of colours: 8
Print possibilities: 8 + 0
Fast sleeve change
4 motor per deck CNC position system
Computer supervision
Web width: 1050mm
Print width: 1000mm
Minimum print repeat: 320mm
Maximum print repeat: 800mm
Unwind: turret automatic with roll loading system
Maximum reel diameter unwind: 800mm
Rewind: turret automatic with roll unloading system
Maximum reel diameter rewind: 800mm

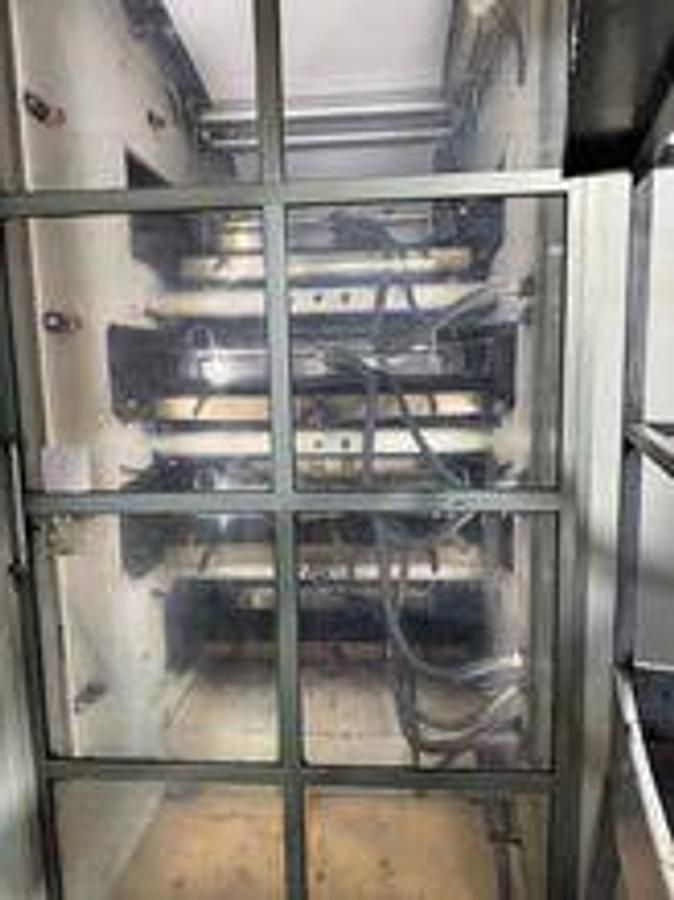

Drying: 2 zones, 4 fans, final tunnel 4mt length
Gas burners: x 2, 200.000kcl/h each
Automatic air recirculation system with LEL controls on each zone
Video camera, Grafykontrol with auto register control
Web guides: in and out
Viscosity control
Washing system: automatic
Inking system: closed chamber doctor blades
Anilox: x 18 ceramic
Print sleeves: approximately 200
