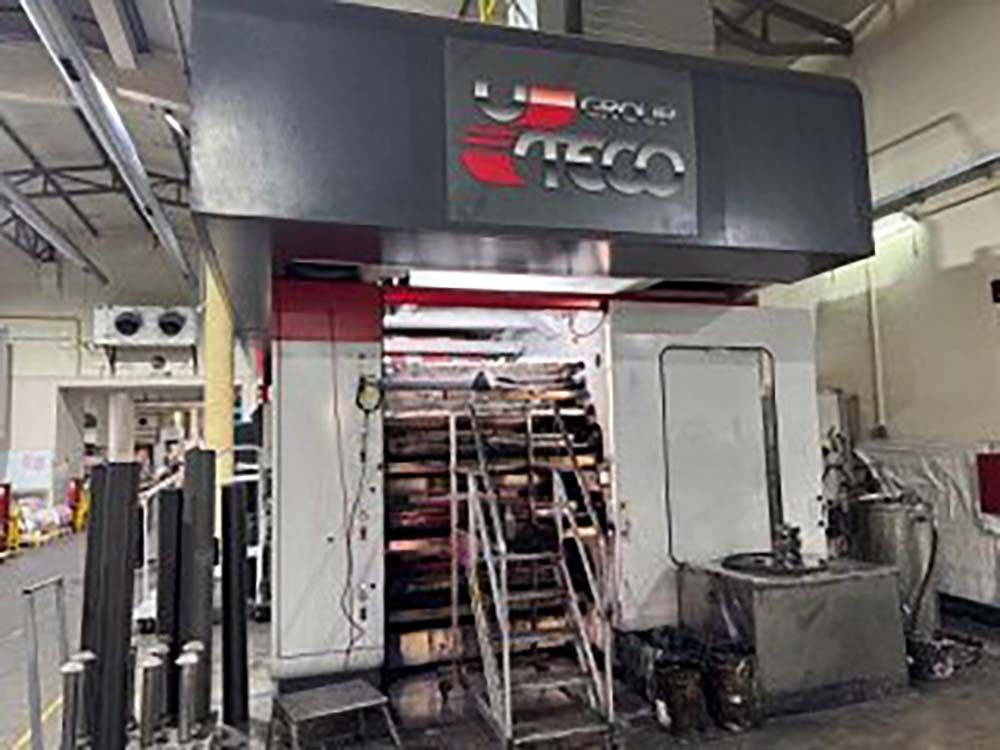

Uteco CRYSTAL 808 8 1500 mm

Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1550
Print width (mm) 1500
Min print repeat (mm) 400
Max print repeat (mm) 850
Unwinder type Turret Automatic with roll loading system
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Automatic with roll unloading system
Max reel diameter rewinder (mm) 1000
Drying 2 zones 4fans with inverter contro, final drying tunnel 5 t long, 2 gas burners , Automatic air recirculation system in both zones with LEL control
Videocamera Yes Grafykontrol Progrex 500 with camera Matrix 500, 3ccd with 100 % inspection , click and drag register adj system , 100 % defekt control
Corona treatment Yes Ferrarini Benelli, driven
Web guides yes in and out
Vyscosity control yes automatic Gama G 26
Washing system Automatic wash up system
Inking system Closed chamber doctor blades
Print Sleeves 224 printing sleevs 8 for each following repeat 400mm, 410, 420, 425 , 440 , 450, 460 , 470 , 480 , 500 , 510 , 520 , 530 , 540 , 560 , 580 , 600 , 620 , 640 , 650 , 660 , 670 , 680 , 700 , 720 , 740 , 760 , 780
Machine end 2019 installed 2020 Reprint system comlete with register control Automatic printing pressur setting Kiss and Go Automatic printing pressure adj .with speed P2P
