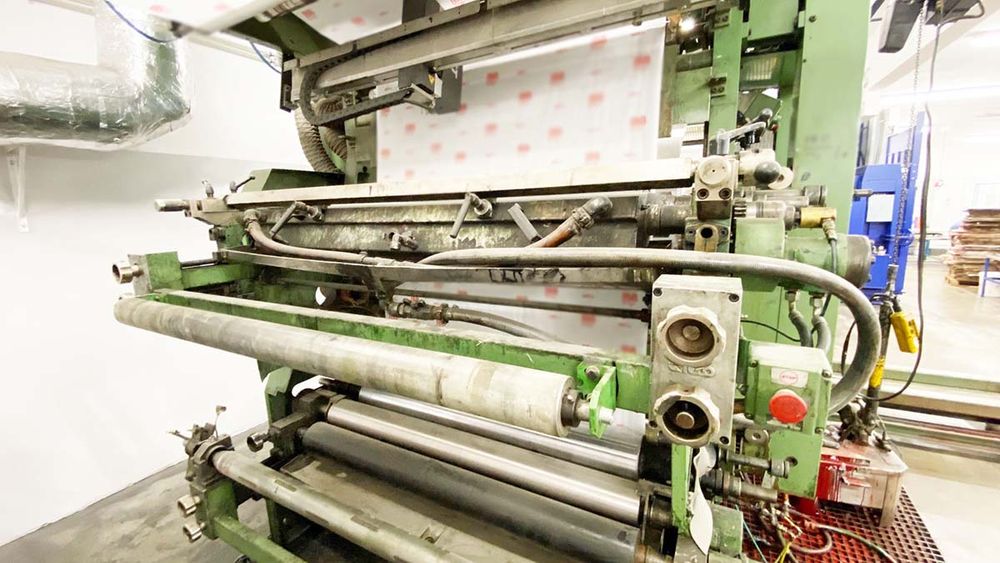

Uteco SILVER IL 412 4 1200 mm

Stack type
Print width: 1200 mm
Number of colors: 4
type of unwinder: single
type of rewinder: single
Max reel dia of unwinder: 1200 mm
Max reel dia of rewinder: 900 mm
min-max print repeat: 350-1200 mm
3 doctor blades and 1 rubber rolls
web guide before rewinding
Max speed: 200 m/min
Automatic printing press
Printing control: Video Powerscope 4000 BST
Sleeve system: yes
Materials: paper
Electric hoists: 2
Drying system: yes
Longitudinal register: manual
Videocamera: yes
Ink pumps: 3
with in-line slitter
Indicative no. of anilox available to be checked and agreed: no. 4 (3 x 120 lines volumes 12 and 1 x steel)
no. of printing cylinder gears:
4x 600, 4x 630, 4x 650, 4x 670, 3x 700, 8x750, 4x780, 4x800, 4x820, 3x850, 4 x 880, 4x900, 4x940, 4x970, 3x1000, 4x1030, 4x1050, 4x1100, 4x1150, 4x1180
gears
Indicative overall dimensions: 10 m LENGTH x 3,5 m WIDTH X 2,5 (3 M) HEIGHT
